EdgeTech is a leading manufacturer of underwater technology solutions. The company is known worldwide for its high quality products which include: side scan sonars, sub-bottom profilers, bathymetry systems, AUV and ROV-based sonar systems, combined and customized solutions. In addition to the full line of underwater survey products, EdgeTech provides reliable USBL systems, transponder beacons, deep sea acoustic releases, shallow water and long life acoustic releases, MRUs and customized underwater acoustic command and control systems.
The company traces its history back to 1965 when it started out as a division of EG&G Marine Instruments. In 1995, EdgeTech became a private company and selected its name in part to honor the late Dr. Edgerton, an MIT professor, marine instrumentation pioneer and a founder of EG&G. In 2012 ORE Offshore, a leading provider of acoustic releases, transponders and USBL systems, adopted the EdgeTech name after over ten years operating as an affiliate organization within the company.
The company has a comprehensive suite of in-house testing facilities including test pools, acoustic test tanks, pressure test chambers and two company research vessels used for testing and sea trials. These facilities allow the companies to fully test and calibrate every system to ensure the delivery of the most reliable and highest quality products and systems.
From ship hull inspection and underwater mapping to nautical charting and oil and gas surveys, for more than 40 years EdgeTech has been the industry leader in providing underwater imaging systems to commercial, government, research and military institutions worldwide.
Acoustic Releases, Transponders, Command and Control Systems

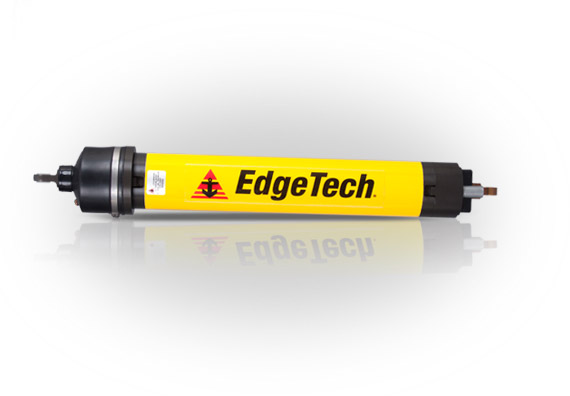

PORT Strong Back Release Transponder
The Strong Back option for the PORT acoustic release increases release rating and lift load rating to 2,500 lbs and 3,500 lbs respectively.
The PORT Strong Back Release Transponder is ideal for heavy weight deployments in coastal environments. The strong back portion of the unit increases lift load rating to support heavy mooring deployments. The mechanical drive off system, coupled with a load carrying strong back is the best choice for deployments where mechanisms can experience growth or sediment build up.
The medium frequency acoustic command structure is very reliable in areas where vessel traffic is common and is unsurpassed in multi-path environments.
Key features:
- Strong back mechanical load arm increases release load capabilities
- All Aluminum components
- Simple and Easy maintenance
- Small lightweight package
- Full transponder capability
- Uses standard batteries
- 1 year on alkaline batteries
- 1.5 years on Lithium batteries
- Reliable and secure command coding
- Purge Port
- Auto Disable
- Tilt & Release indication
- Release Load: 1,136 kg
- Depth Rating: 3500 meters

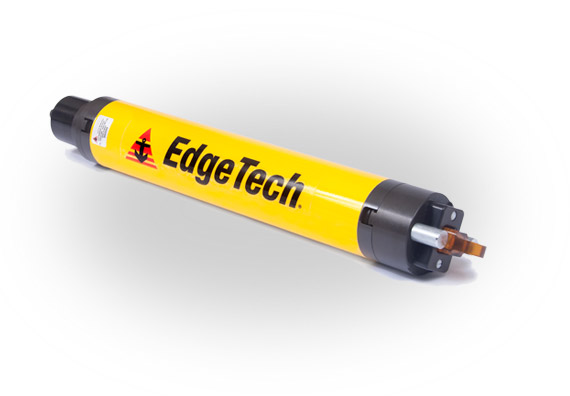

PORT MFE Push Off Release Transponder
The PORT Medium Frequency Extended Life Push Off Release Transponder is ideal for deployments in coastal environments. Unique push-off mechanism provides reliable release every time.
The mechanical drive off system is the best choice for deployments where mechanisms can experience growth or sediment build up.
The medium frequency acoustic command structure is very reliable in areas where vessel traffic is common and is unsurpassed in multi-path environments.
Key features:
- Unique push-off mechanism provides reliable release every time
- All Aluminum components
- Simple and Easy maintenance
- Small lightweight package
- Medium load acoustic release
- Full transponder capability
- Uses welded battery pack
- 5 years on alkaline batteries
- Reliable and Secure command coding
- Purge Port
- Auto Disable
- Tilt & Release indication
- Release Load: 250 kg
- Depth Rating: 3500 meters

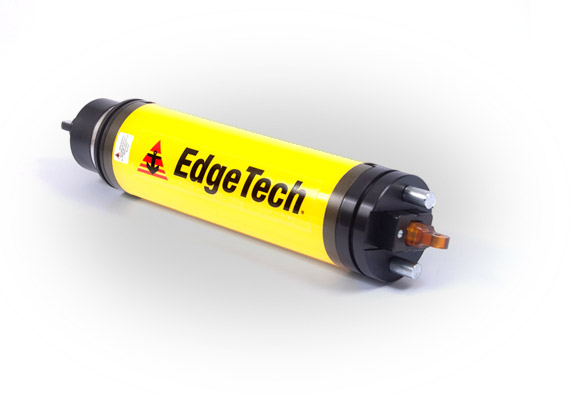

PORT LF Push Off Release Transponder
The PORT Push Off Release Transponder is ideal for deployments in coastal environments. Unique push-off mechanism provides reliable release every time.
The mechanical drive off system is the best choice for deployments where mechanisms can experience growth or sediment build up.
The Low frequency acoustic command structure is proven to be very reliable and is unsurpassed in multi-path environments.
Key features:
- Unique push-off mechanism provides reliable release every time
- All Aluminum components
- Simple and Easy maintenance
- Small lightweight package
- Medium load acoustic release
- Full transponder capability
- 2 year on alkaline batteries
- Reliable and Secure command coding including Enable, Disable and Release commands
- Purge Port
- Auto Disable
- Tilt & Release indication
- Release Load: 350 kg
- Depth Rating: 3500 meters
- DEEP PORT LF Depth Rating: 4000 meters

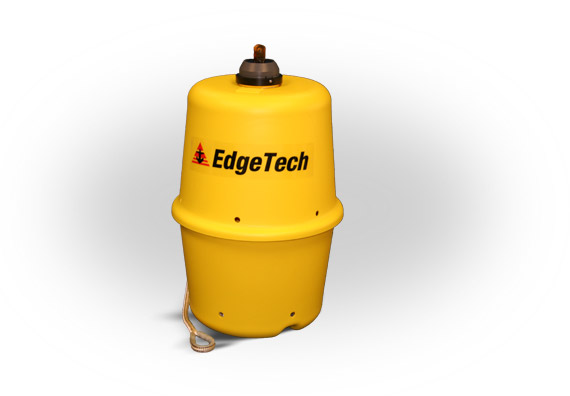

PORT Pop-Up Recovery System
The PORT Push Off Release Transponder Pop-up recovery package is ideal for deployments in coastal environments. The mechanical drive off system is the best choice for deployments where acoustic release mechanisms can experience growth or sediment build up. The Popup flotation package can be added to the PORT LF SD or PORT MFE acoustic releases. The canister can be outfitted with customer supplied rope (line) of various lengths.
Key features:
- Reliable pop-up design
- Configurable with various line lengths
- Works with PORT acoustic releases
- Great positive buoyancy for recovery in strong currents
- Simple and easy maintenance
- Small lightweight package
- Release attached to top flotation portion & comes up with float upon release
- Full transponder capability
- Made with corrosion resistant materials
- 1200 unique command codes
- Auto disable (power saving)
- Depth Rating: 200 meters
PORT LF-SD Release Transponder
The PORT LF-SD Push Off Release Transponder is ideal for deployments in coastal environments. The mechanical drive off system is the best choice for deployments where mechanisms can experience growth or sediment build up. The low frequency acoustic command structure is proven to be very reliable and is unsurpassed in multi-path environments.
Key features:
- All Aluminum components
- Simple and easy maintenance
- Small lightweight package
- Medium load acoustic release
- Full transponder capability
- 1.25 years on alkaline batteries
- Reliable and secure command coding including Enable, Disable and Release commands
- Purge Port
- Auto Disable
- Tilt Release Indication
Model BRT6000 Burn Wire Activator
The BRT6000 Burn Wire Activator / Acoustic Transponder is a reliable, and versatile mooring instrument.The BRT6000 is made entirely of 7075 aluminum to keep it light while still be capable of deep deployments. Acoustic status reply includes both tilt and optional inputs. The command structure used has been proven in the toughest acoustic environments anywhere.
Deployments up to 2 years on alkaline batteries.
Key features:
- Dual Burn Wire outputs
- Our standard electronics with a long history of reliability
- All 7075 Aluminum alloy
- Hard-coated & Painted
- Transponder for positioning and recovery
- Alkaline battery pack with 2 year deployment life
- Secure command coding
- Options: I/O communication
- Pressure activation
- Special I/O options
- Depth Rating: 6000 meters

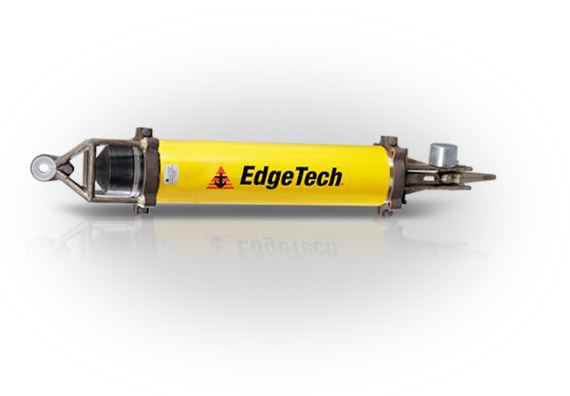

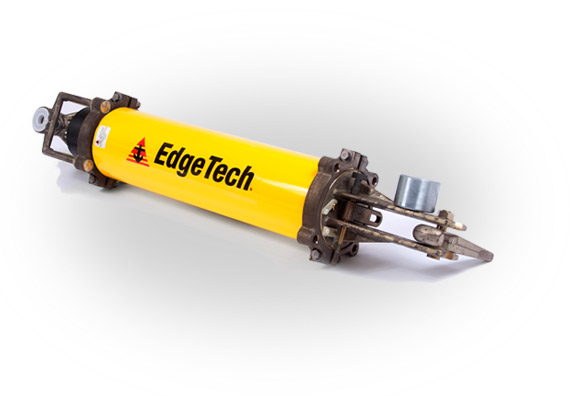

Model 8242XS Acoustic Release Transponder
The 8242XS Acoustic Release Transponder is a field-proven, reliable, and versatile mooring instrument.
The 8242XS is made entirely of Nickel Aluminum Bronze alloy with titanium closure hardware for very long deployments with no corrosion. Acoustic status reply includes tilt and release state. Command structure proven in the toughest acoustic environments anywhere.
There are many of these releases over 15 years old and still in use today.
Key features:
- Release load of 5,500 kg
- Also available in a Heavy Releases Load (HLR) configuration – release loads up to 48,000 kg
- Depth Rating: 6000 meters
- Longest history of reliability in the industry
- Nickel Aluminum Bronze alloy construction
- Titanium closure hardware
- Transponder for positioning and recovery
- Several battery configuration options for long life
- Secure command coding
- Options: I/O communication
- Pressure activation
- External On/Off
- Extended battery life

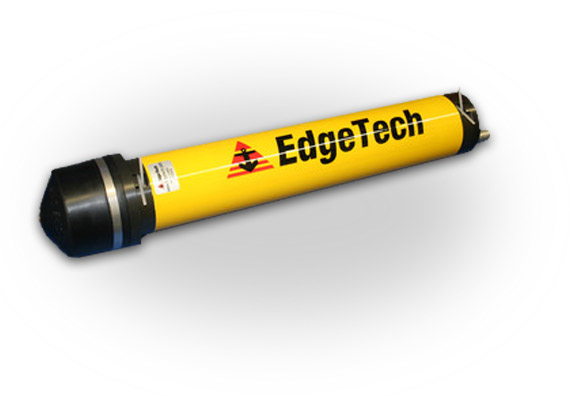

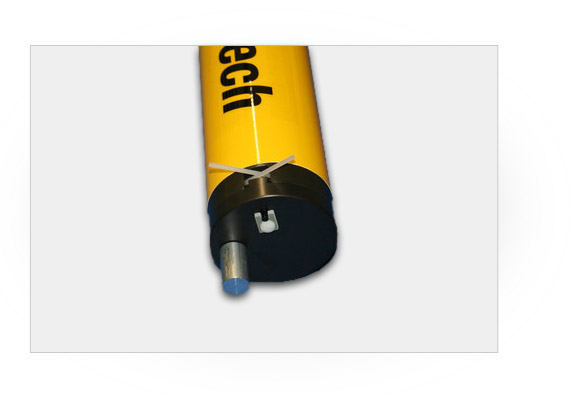

CAT Coastal Acoustic Transponder
The Coastal Acoustic Transponder (CAT) is ideal for deployments in coastal environments. The acoustic command structure is the same as that used in all of our underwater acoustic releases and transponders and is unsurpassed in multi-path environments.
The CAT has been designed for use as an underwater instrument location and positioning aid. They have applications as part of the recovery system on oceanographic moorings and platforms. The precision, high output power and commandable transponder feature make these instruments ideal for use with positioning systems in difficult acoustic environments.
The CAT utilizes EdgeTech’s field proven Binary Acoustic Command System (BACS) code structure. The BACS coding structure provides 12,000 possible secure command codes. Each transponder is factory programmed with its own unique command set which includes transponder ENABLE, DISABLE. Whenever the instrument receives a command it responds with a status reply message which indicates the orientation of the instrument (tilted or not tilted).
The transponder function can be turned on or off with the ENABLE and DISABLE commands. When disabled the transponder will not reply when interrogated. This ensures that the unit will not interfere with nearby instruments and that no battery energy is wasted replying to interrogate signals meant for other systems.
Key features:
- Easy maintenance
- Small lightweight package
- Full transponder capability
- Two year life on alkaline batteries
- Secure command coding
- Tilt/no tilt indications
- Depth Rating: 3500 meters

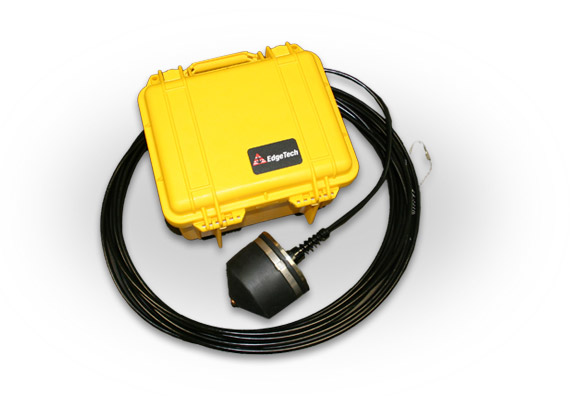

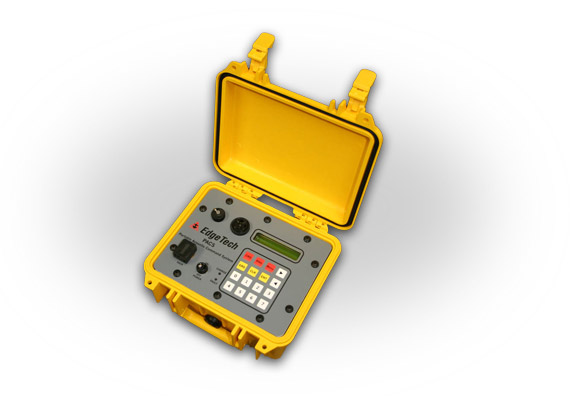

PACS Portable Acoustic Control System
The PACS, Portable Acoustic Command System, is a highly versatile deck unit that can be used to control and range on EdgeTech’s (formerly ORE Offshore) low frequency (LF) or medium frequency (MF) acoustic releases and transponders. The rugged, lightweight unit provides a highly intuitive user interface that allows you to go right to work, spending your valuable time in the field, not in training. The system is powered by an internal lithium ion rechargeable battery or A/C power. The PACS works with all standard EdgeTech acoustic transponding releases. See below for our acoustic transponding release products.
Key features:
- Works with all standard EdgeTech acoustic releases
- Lightweight and portable
- Easy to operate
- Affordable
- Full command set
- Acoustic range capability
- Rugged and splash proof
- Flexible battery/power options
- Capable of MF or LF frequencies
- RS-232 port
- Backlit extended temp display

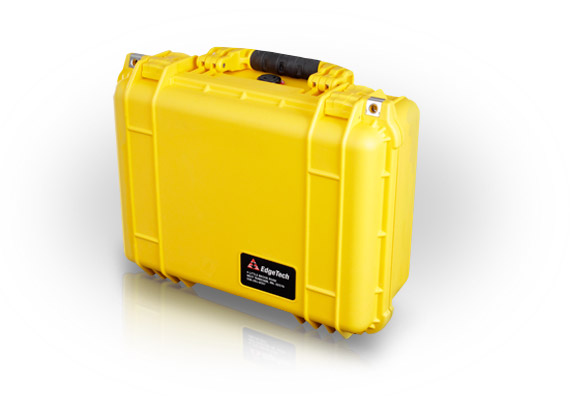

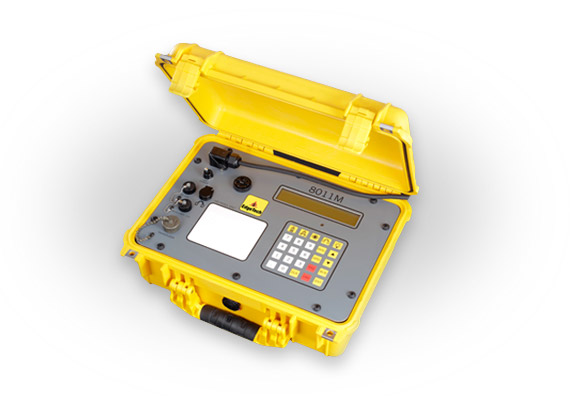

Model 8011M Acoustic Transciever
The 8011M is the most versatile acoustic command ranging deck available. This system can control and range on EdgeTech’s (formerly ORE Offshore) full line of acoustic releases as well as other manufacturers’ equipment. Features include auto switching between 115 and 230 VAC and an internal self-charging battery. The serial and auxiliary ports allow for simple interfacing with other onboard equipment. System includes a dunking transducer with 67 meters of cable.
Key features:
- Very user friendly
- Extremely versatile
- Sends most manufacturers command structures
- Provides full command and range capability
- Rugged and Reliable
- Runs on 115 or 230 VAC
- Self charging Internal battery
- DSP based for multiple channel operations
- Includes dunking transducer with 67 meters of cable

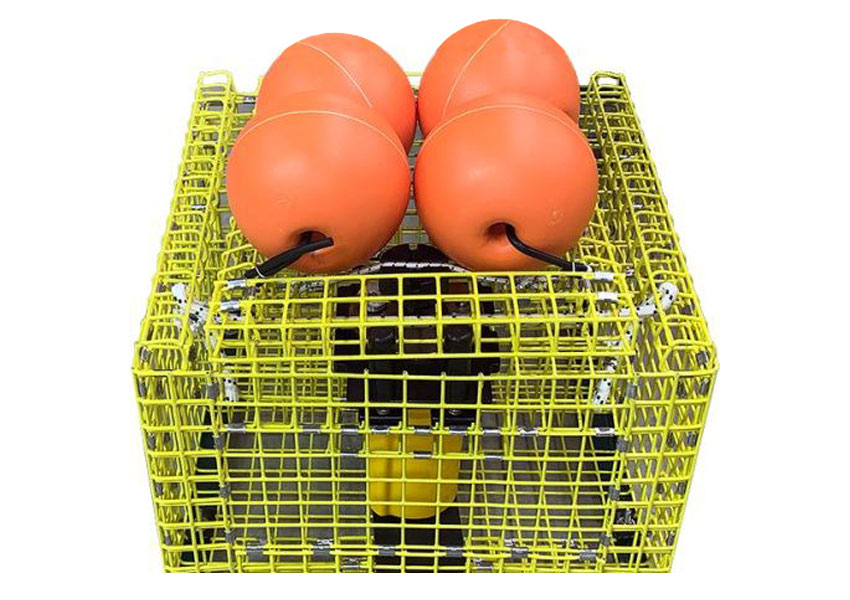

5112 Ropeless Fishing System
The EdgeTech 5112 Ropeless Fishing System was developed to eliminate vertical lines connecting a surface buoy to bottom fishing gear prior to retrieval. Using a reliable acoustic command and control system the 5112 can be deployed “like another lobster trap” but without the need for a surface rope and buoy. This specific system was designed from the ground up with the input of lobster fishermen with the intent of alleviating possible whale entanglement and other negative effects of seafloor-to-surface lines.
Key Features:
- Ropeless fishing using robust acoustic release technology
- Corrosion resistant and strong nickel aluminum bronze alloy material
- Easy re-arm reusable screw-on release link
- Uses standard 9 volt batteries for 1 years, 3000 replies, 100 releases
- Range responder to help relocate trawls and cages
- Release cage can be made by fishermen
- Release cage easy to repack on the boat and reset quickly
- Works with EdgeTech Trap Tracker App
