With well over 40,000 Doppler products delivered worldwide, Teledyne RD Instruments is the industry’s leading manufacturer of Acoustic Doppler Current Profilers (ADCPs) for current profiling and wave measurement applications and Doppler Velocity Logs (DVLs) for precision underwater navigation applications.
Teledyne RD Instruments was founded in 1982 and revolutionized the industry through the development of the first acoustic Doppler current profiler (ADCP). Now a part of the Teledyne Marine group, Teledyne RD Instruments continues to be an innovative force in the industry by designing, improving and manufacturing, proven solutions for current profiling, wave measurement, and precision navigation. With a staff of over 100 scientists, engineers, technicians, and sales and support personnel, the company's San Diego-based global headquarters is an 80,000 square-foot ISO-9001:2008 facility that includes state-of-the art engineering, laboratory, manufacturing, and test areas.
Teledyne RDI's game-changing technology has allowed tens of thousands of scientists, engineers, and researchers to explore and understand our world's oceans, rivers and streams in a way that was previously thought impossible.

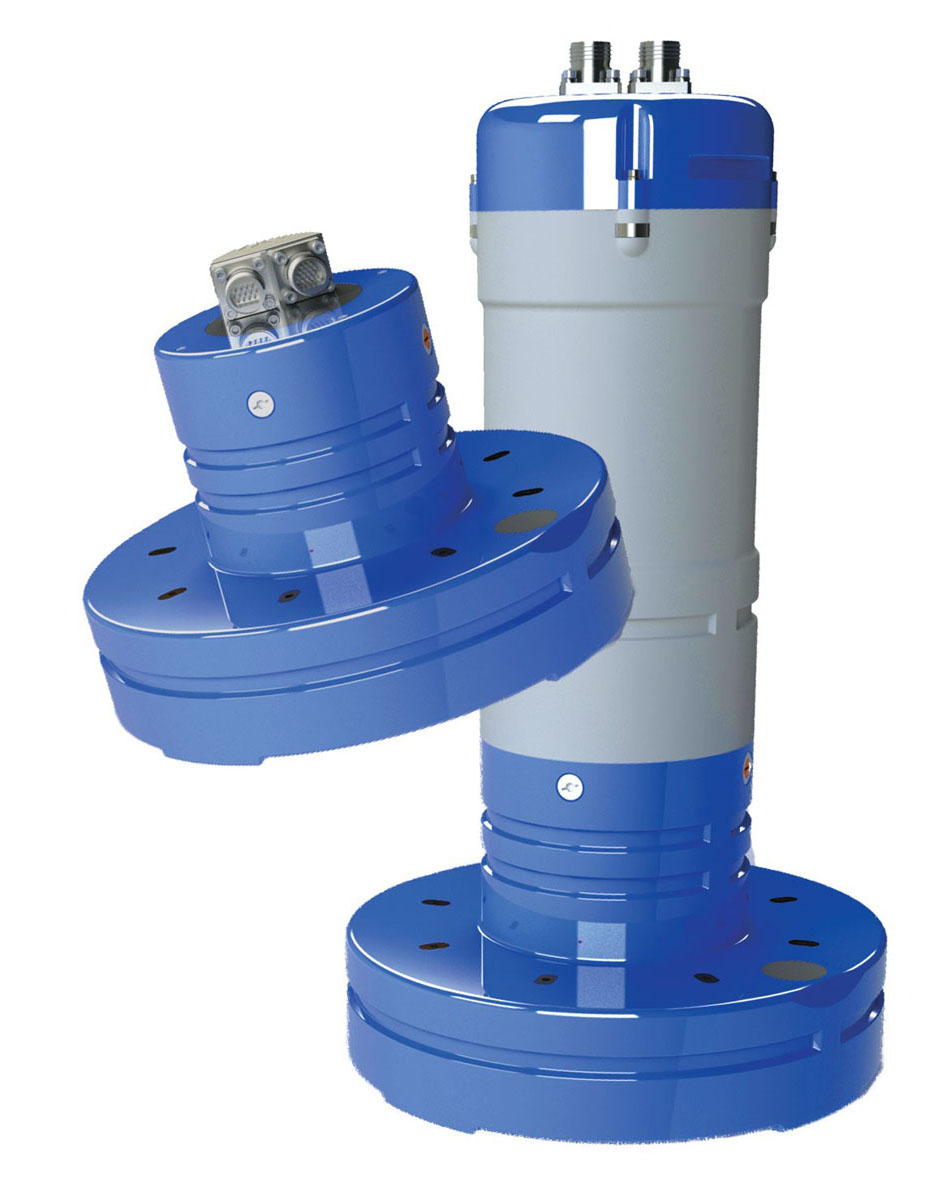

Pinnacle 45 ADCP
Since 1997 Teledyne RD Instruments has been developing ADCPs that have been field-proven to profile beyond 1000 m from research vessels traveling at speeds >15 knots and from offshore oil and gas platforms deployed around the globe. Building on the success of its industry standard Workhorse product line, the Pinnacle 45 is Teledyne RDI’s next-generation long-range ADCP.
The Pinnacle 45 is a 2000m depth rated 45 kHz phased-array ADCP capable of profiling ocean currents to 1000m in a footprint typically associated with ADCPs achieving half of that range, greatly increasing portability and simplifying deployment.
Application installations include mounting on an oil platform, inside or over the side of a vessel, in subsurface and surface buoys, as well as in bottom and in-line frames—anywhere long-range profiling is required.
Some of the many improvements include:
- An external LED ensures you know the system is operational when it’s been deployed
- 2 x MicroSD cards providing data storage redundancy (1 in the electronics and 1 in the battery compartment)
- Health Monitoring and leak detection providing peace of mind that the system is operating as intended
- Select real-time or self-contained operation in the field at no extra cost
- 4 beam continuous sampling
- Reduced size and weight
- Independent or Interlaced long range and high-resolution modes allow you to optimize the system for unique deployment requirements, at ranges of up to 1000 m, offering the best of both worlds in a single instrument

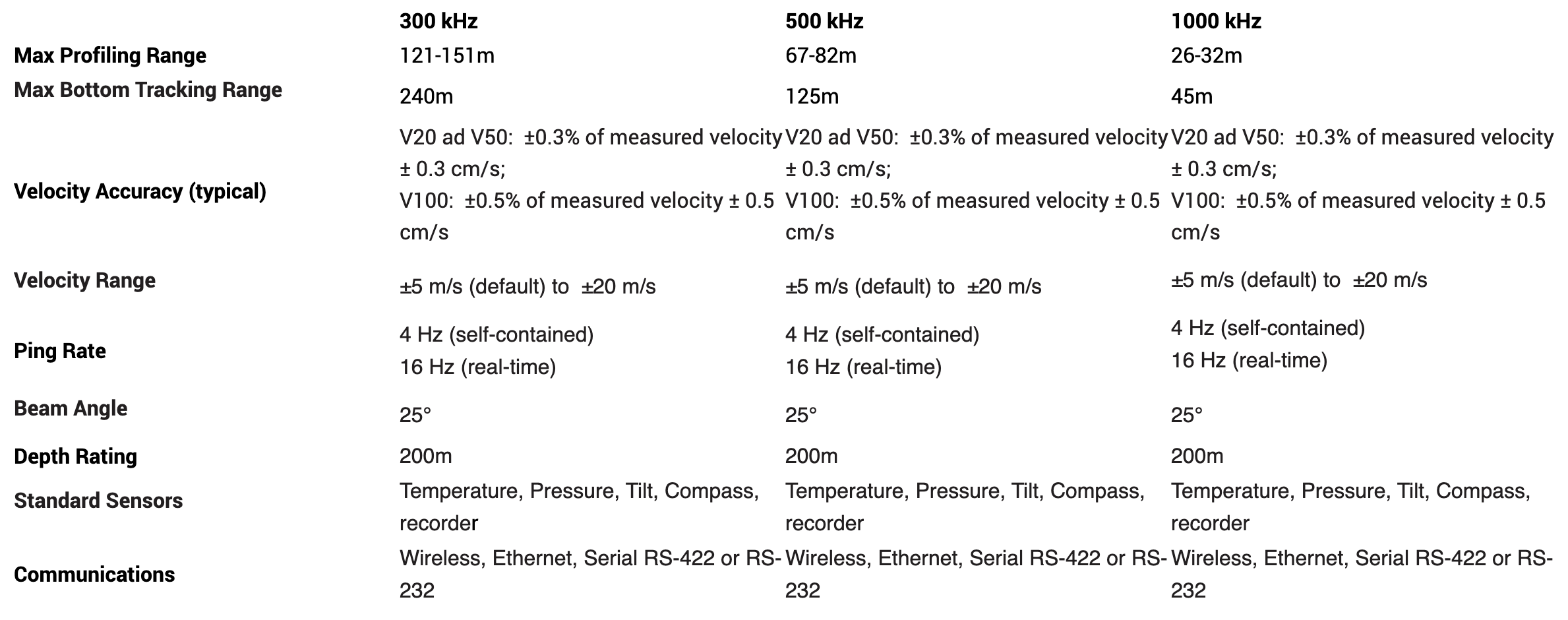

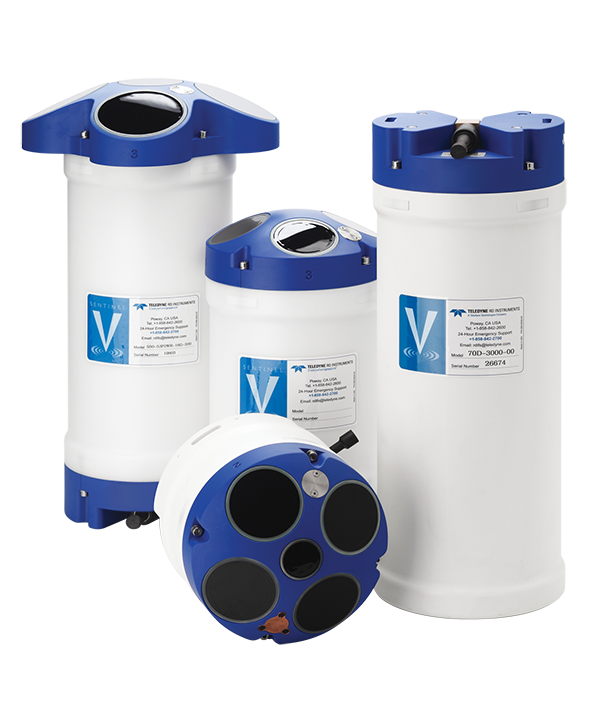

Sentinel V ADCP Series
The Sentinel V ADCP represents a perfect balance of capability and flexibility on one hand, with robustness and reliability on the other. Whether the research goals are focused and singular, or variable and multi-faceted, the Sentinel V will get you the data you need in the most efficient manner possible.
From its embedded wifi interface (no software to upload or maintain!), follow its incredibly intuitive and clean-yet-thorough setup process to deploy with confidence. From here, any kind of deployment is possible—self-contained or real-time, fixed-mounted or boat mounted, up-looking or down looking, mean currents or waves and turbulence.
Multiple concurrent sampling strategies allow you to accomplish multiple research goals at the same time. Plus, Sentinel V’s data are truly raw data! This means all data can be processed or reprocessed to meet study and/or QC objectives with no restrictions later on.
This high level of data quality and availability is further backed by the hardware design which includes multiple features to protect against damage and minimize maintenance over the life of the instrument.
Sentinel V Waves Array
Teledyne RD Instruments Sentinel V Waves Array combines our highly robust, field-proven WavesMon processing with our new 5-beam Sentinel V ADCP to provide the highest-quality waves and current profiles of any ADCP in use today.
Key features:
- Available in three profiling ranges: 20m, 50m, 100m
- Bottom or boat-mounted
- Real-time and bottom-tracking options
- Data rates up to 16 Hz
- Supports multiple concurrent sampling strategies
- Records raw data for future processing—analyze over different time scales as study objectives and features in the observed data may require.
- Off-the-shelf battery option
- Wireless data download
- Setup via wireless browser interface—no software required
- Setup tool to ensures robust sampling strategy despite complex variables
- Hardware security features, including: captured o-rings, separate electronics and battery chambers, self-contained transducer design

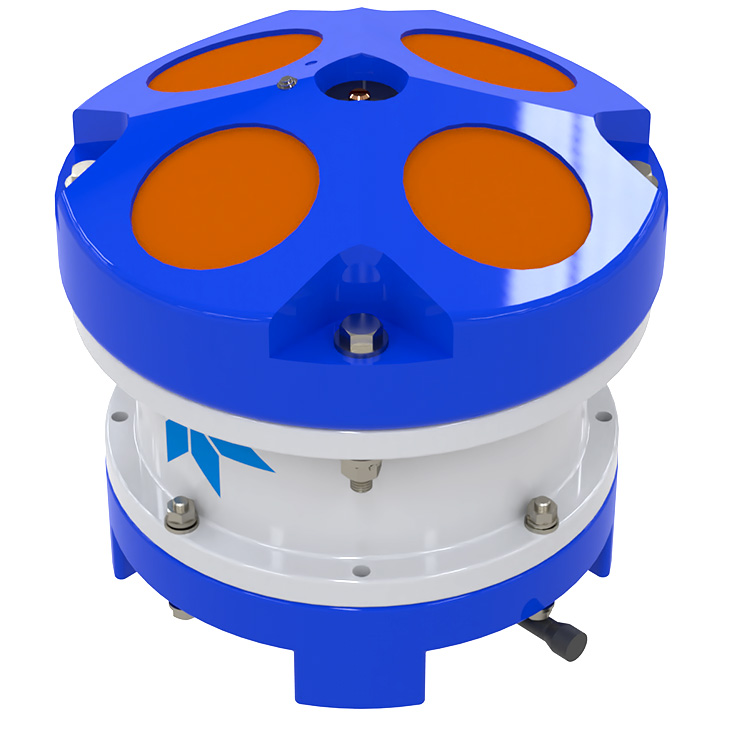

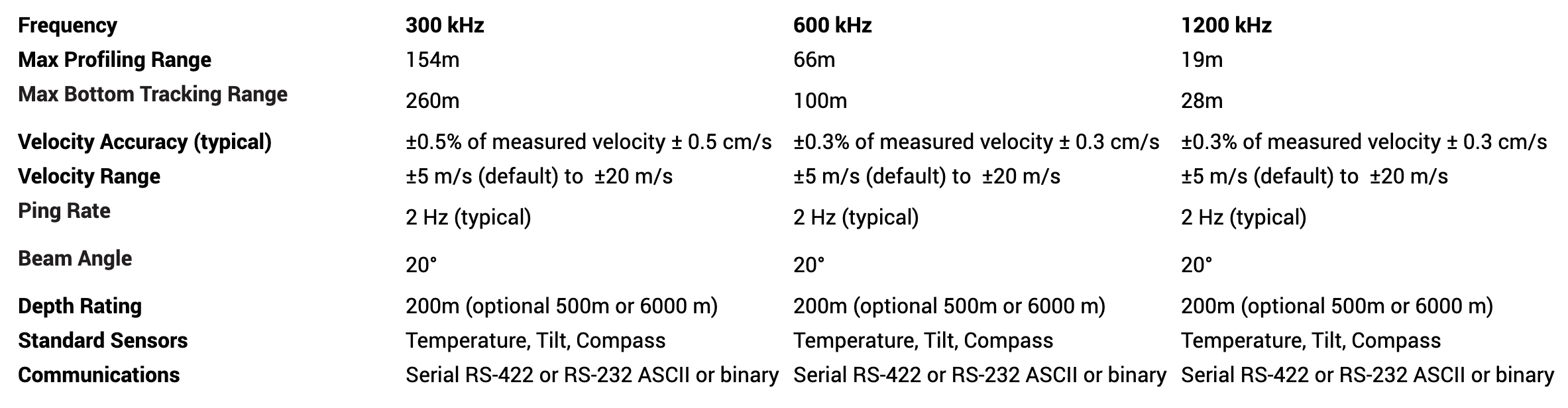

Workhorse II Monitor ADCP
The Workhorse II Monitor is Teledyne RD Instruments most popular direct-reading Acoustic Doppler Current Profiler. The unit is typically bottom frame-mounted and hard-wired to shore to provide real-time monitoring of coastal currents. The Workhorse II Monitor's high data accuracy and reliability make it a favorite for deployments in high-volume traffic areas such as ports and harbors, where the data is often integrated into a Vessel Traffic Monitoring System.
Beginning in 2023, the Workhorse II models replace the original Workhorse models and include several improvements. These include increased memory in compact flash card, compass with improved performance and specifications (especially at higher latitudes and tilt angles); and raw magnetometer data for use in postprocessing. In addition, a 200m pressure sensor and water modes LADCP, Ice Tracking, Mode 11 and Mode 12 come standard and are not required to be purchased.
Key features:
- Accuracy and reliability: The Monitor is ideally suited for the most demanding environments, including high traffic areas such as ports and harbors.
- Versatility: This direct reading unit can easily be upgraded to include external battery pack, bottom tracking, and directional wave measurement.
- Precision data: BroadBand signal processing delivers very low-noise data, resulting in unparalleled data resolution and minimal power consumption.
- A four-beam solution: 4-beam design improves data reliability, improves data quality, and improves data accuracy.

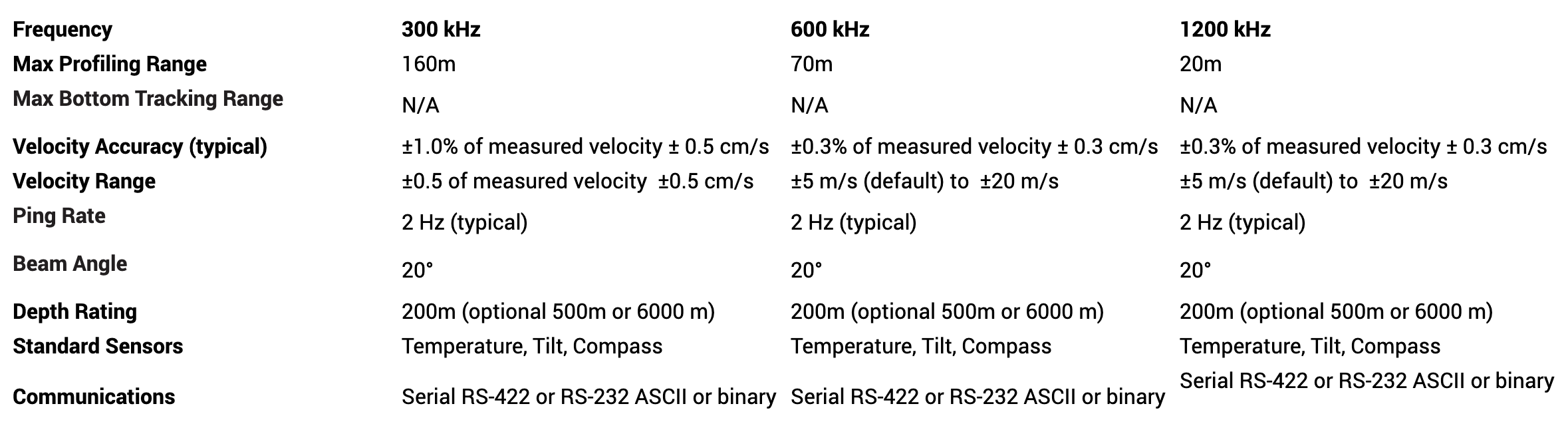

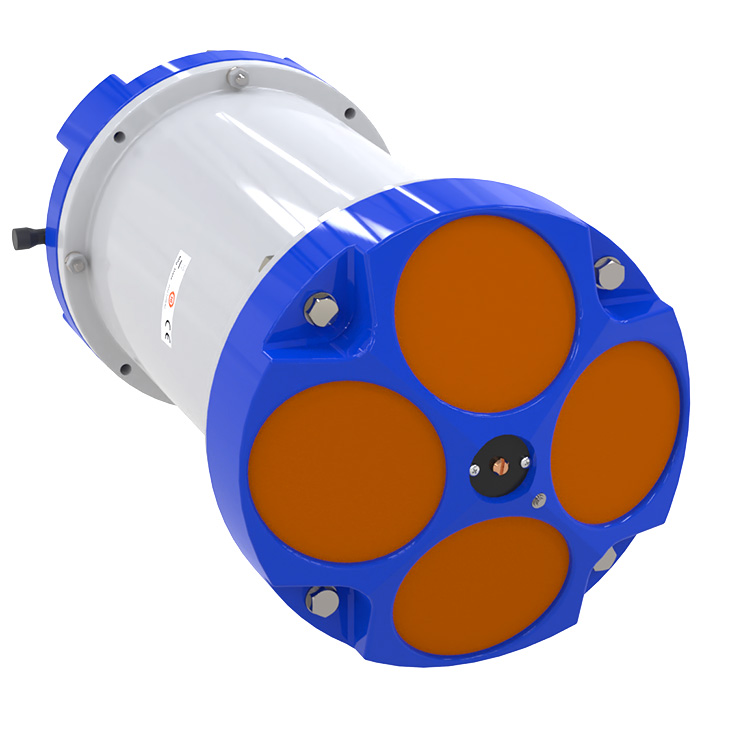

Workhorse II Sentinel ADCP
The self-contained Workhorse II Sentinel ADCP is Teledyne RD Instruments' most popular and versatile acoustic Doppler current profiler (ADCP) configuration, boasting thousands of units in operation in over 50 countries around the world.
By providing profiling ranges from 1 to 165m, the Workhorse II Sentinel ADCP is ideally suited for a wide variety of applications. The Workhorse II Sentinel also offers unbeatable precision, with unmatched low power consumption, allowing you to collect more data over an extended period.
The lightweight and adaptable Workhorse Sentinel is easily deployed on buoys, boats, or mounted on the seafloor. Real-time data can be transmitted to shore via a cable link or acoustic modem, or data can be stored internally for short or long-term deployments.
Beginning in 2023, the Workhorse II models replace the original Workhorse models and include several improvements. These include increased memory in compact flash card, compass with improved performance and specifications (especially at higher latitudes and tilt angles); and raw magnetometer data for use in postprocessing. In addition, a 200m pressure sensor and water modes LADCP, Ice Tracking, Mode 11 and Mode 12 come standard and are not required to be purchased.
Key features:
- Versatility: Direct reading or self contained, moored or moving, the Sentinel provides precision current profiling data when and where you need it most.
- A solid upgrade path: The Sentinel has been designed to grow with your needs. Easy upgrades include bottom tracking, and directional wave measurement.
- A four-beam solution: Teledyne RDI’s patented 4-beam design improves data reliability, improves data quality, and improves data accuracy.
- Precision data: Teledyne RDI’s patented BroadBand signal processing delivers very low-noise data, resulting in unparalleled data resolution and minimal power consumption.

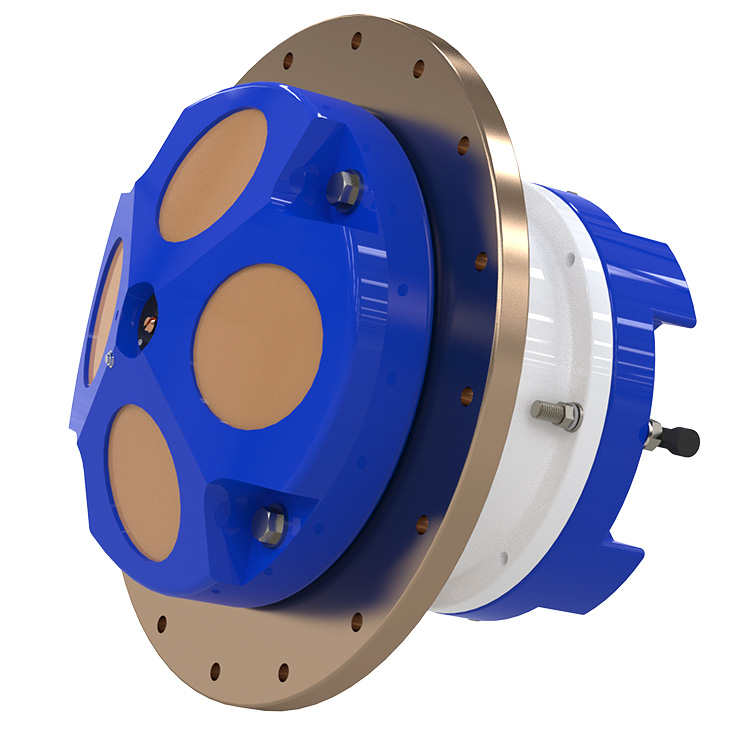

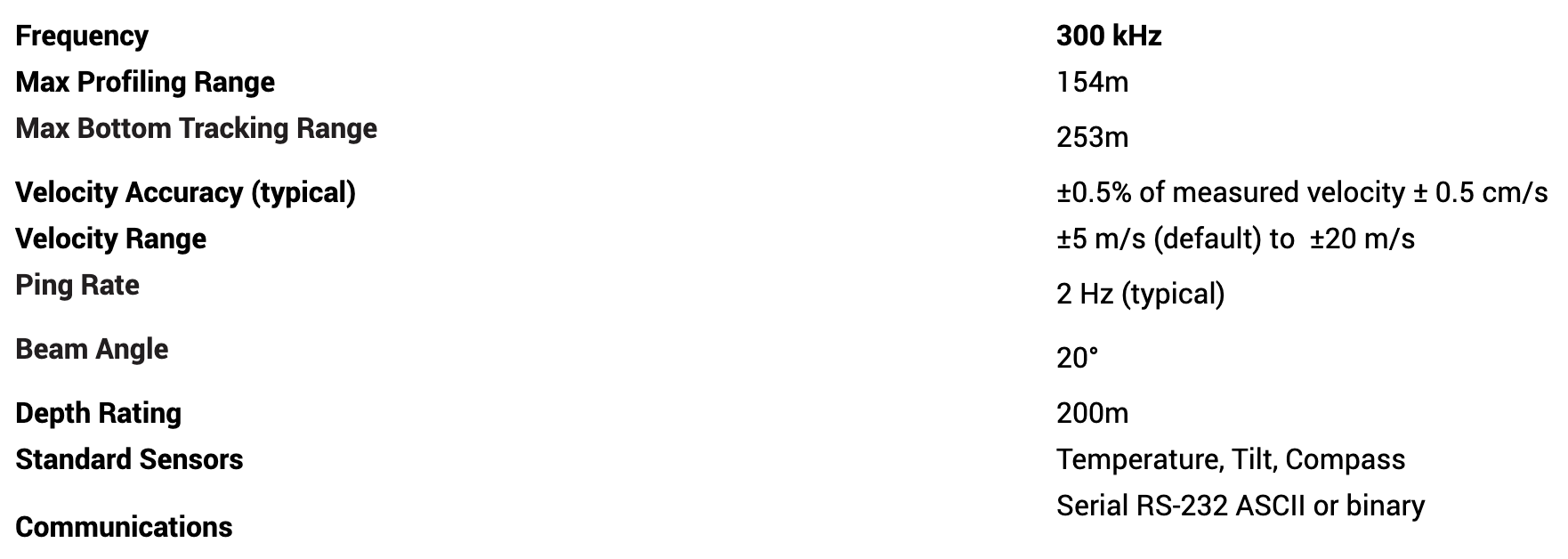

Workhorse II Mariner ADCP
Teledyne RD Instruments' Workhorse II Mariner Acoustic Doppler Current Profiler (ADCP) has become the instrument of choice for vessel-based researchers and commercial surveyors, whether working in coastal waters or in deeper waters where high resolution of surface layers is desired.
The Mariner offers all of the benefits of RDI's traditional ADCP products in a compact package designed specifically for coastal hull-mount applications. The unit is easily integrated with the vessel’s GPS/GNSS input to provide integrated ADCP readings with precise position information.
Beginning in 2023, the Workhorse II models replace the original Workhorse models and include several improvements. These include increased memory in compact flash card, compass with improved performance and specifications (especially at higher latitudes and tilt angles); and raw magnetometer data for use in postprocessing. In addition, a 200m pressure sensor and water modes LADCP, Ice Tracking, Mode 11 and Mode 12 come standard and are not required to be purchased.
Key features:
- Convenience: By installing the Mariner directly into the vessel ’s hull, the ADCP is always ready to operate —no need for cumbersome mounting tools and hardware, and the unit is safely protected from external elements.
- Precision data: Teledyne RDI ’s BroadBand signal processing delivers very low-noise data, resulting in unparalleled fine track resolution.
- A four-beam solution: Teledyne RDI ’s 4 beam design improves data reliability, improves data quality, and improves data accuracy.

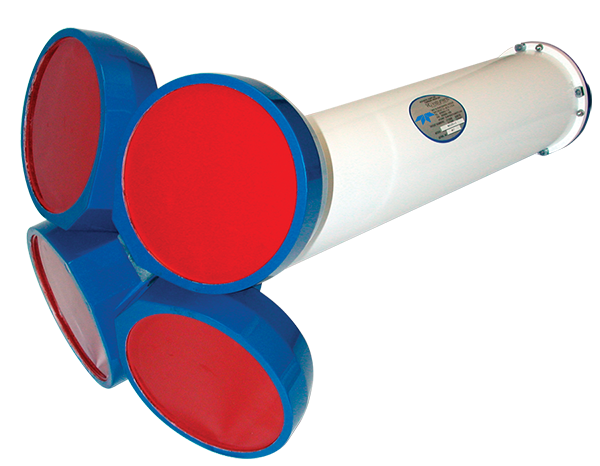

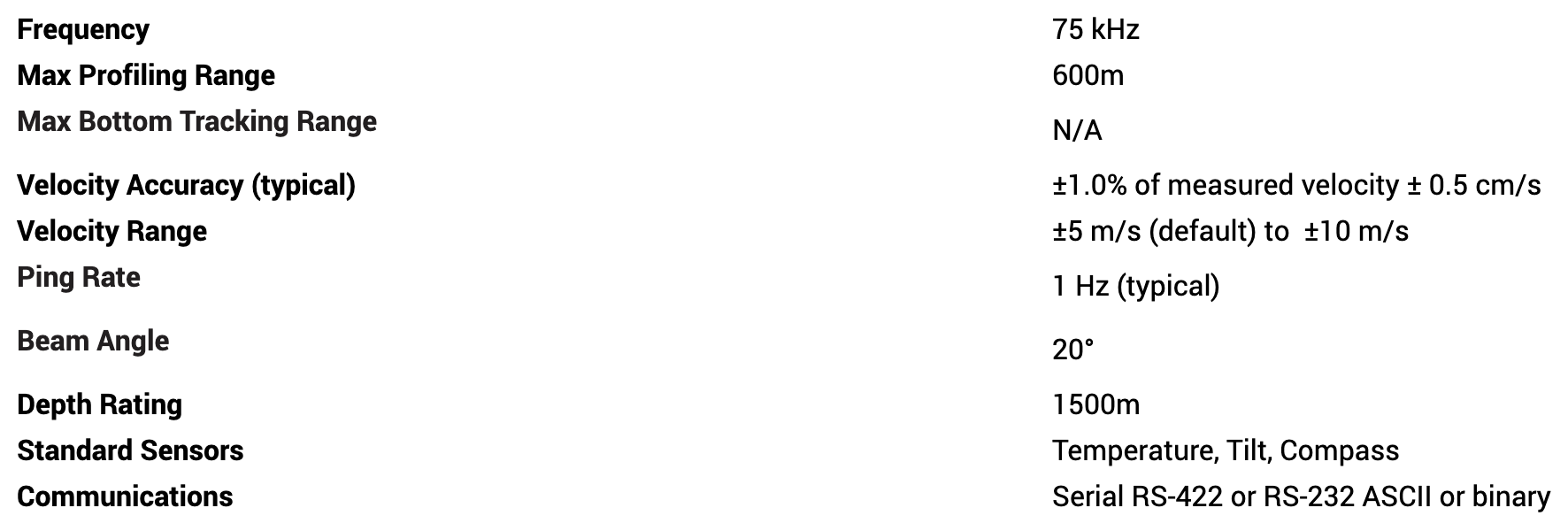

Workhorse Long Ranger ADCP
Long-range, long-term, and reliable, the LONG RANGER is the best choice for gathering detailed data on seasonal and annual current structure fluctuations for scientific research and offshore oil and gas applications. Hundreds of Long Ranger units are currently deployed on:
• environmental monitoring buoys
• offshore oil rigs
• polar research moorings
The highly flexible Long Ranger unit is available in three product configurations: self-contained, direct reading, or remote- head— depending on your application requirements.
Collect data at your desk: the Long Ranger is designed to operate in real-time data mode. Third-party products are available for acoustic and radio data transfer direct to your location.
Key features:
- Industry's most proven long range self-contained ADCP.
- Patented BroadBand signal processing produces precise measurement, allowing frequent sampling with extended battery life.
- Long Ranger inherits the Workhorse family electronics that have been proven in thousands of RDI ADCP applications.
- Set it and forget it: Three, six, twelve-month-long successful deployments from polar waters to the tropics.

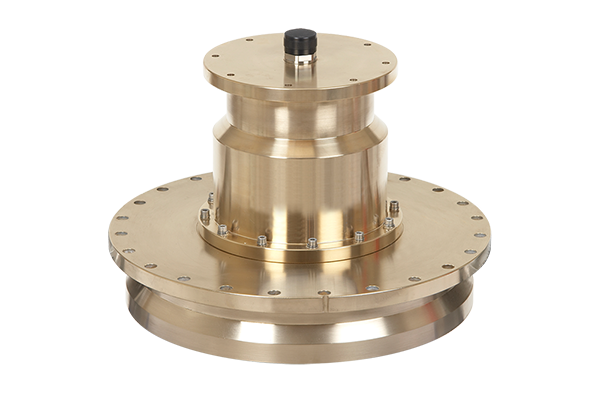

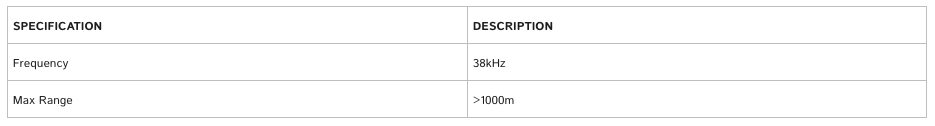

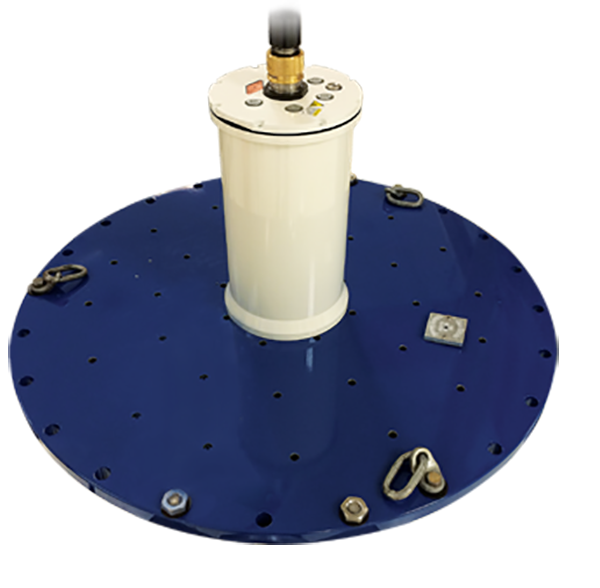

Ocean Observer III 38kHz ADCP
Since 1997 Teledyne RD Instruments has been providing ADCPs that have proven in the field they can profile beyond 1000 m from research vessels traveling at speeds >15 knots and from offshore oil and gas platforms during exploration work.
That same technology has now allowed us to create the Ocean Observer III 38 kHz ADCP. We have combined our field-proven 38 kHz phased array ADCP transducer with our field-proven electronics into a single package that is capable of profiling >1000m.
This design makes it ideal to be mounted from an oil platform, over the side of a vessel, and in surface buoys.
Key features:
- Field-Proven Hardware Functionality: Phased-array transducer technology >18 years Electronics/firmware >5 years
- Field-Proven Profiling Range: 1000 m profiling range on more than 100 installations worldwide for >18 years
- Compact Size: Patented phased-array transducer with integrated electronics in a single package
- Dual Profiling Modes: Independent or interlaced long-range and high-resolution modes to optimize for deployment requirements
- Integrated Sensors: Heading, pitch, roll, temperature, pressure, and HEM sensors
- Versatile: Collect real-time 1000 m profiles from just about any surface platform or mooring

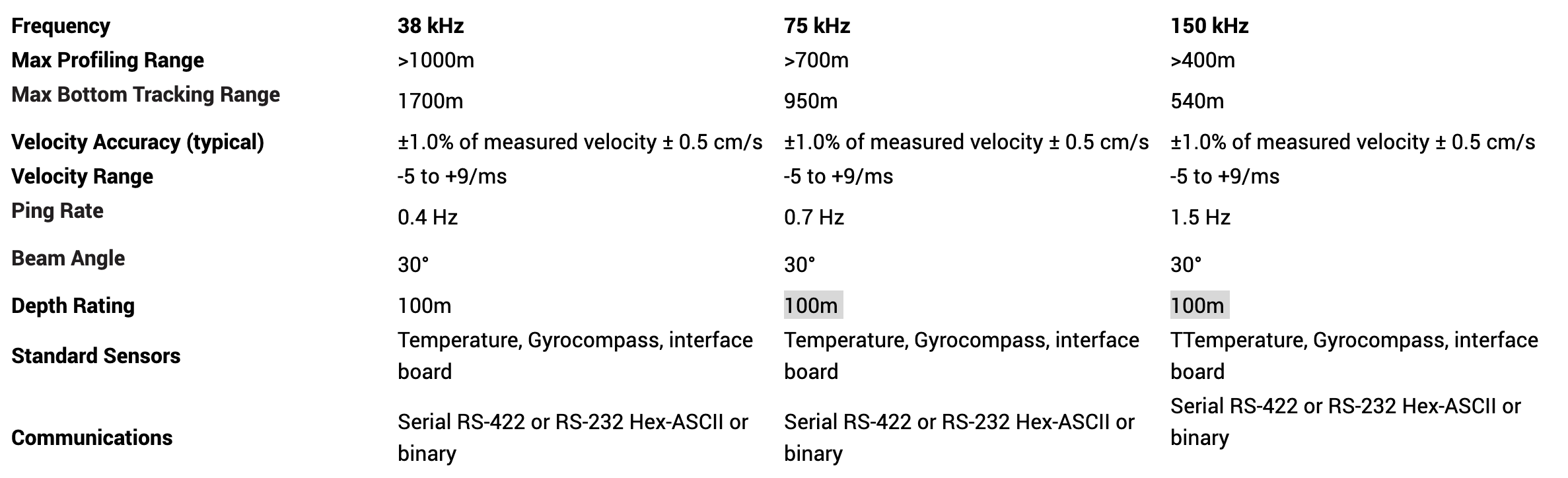

Ocean Surveyor
With decades of experience in both ADCPs (Acoustic Doppler Current Profilers) and specifically phased array (flat-faced) transducer technology, Teledyne RDI remains the preeminent supplier of ADCP instrumentation for open ocean applications.
The world’s most prestigious research institutions, militaries, government agencies and private companies utilize the vessel-mounted Ocean Surveyor family of ADCPs which can collect detailed maps of the distribution of water currents and suspended materials through the water column at depths 1000m and beyond. These depth and resolution capabilities were previously considered unattainable, and TRDI remains the only ADCP manufacturer backed by published research and applications at these depths and resolutions.
Beyond high-quality data and performance, OceanSurveyor is indispensable in practical, operational decision-making where safe and efficient field operations rely on the right environmental data.

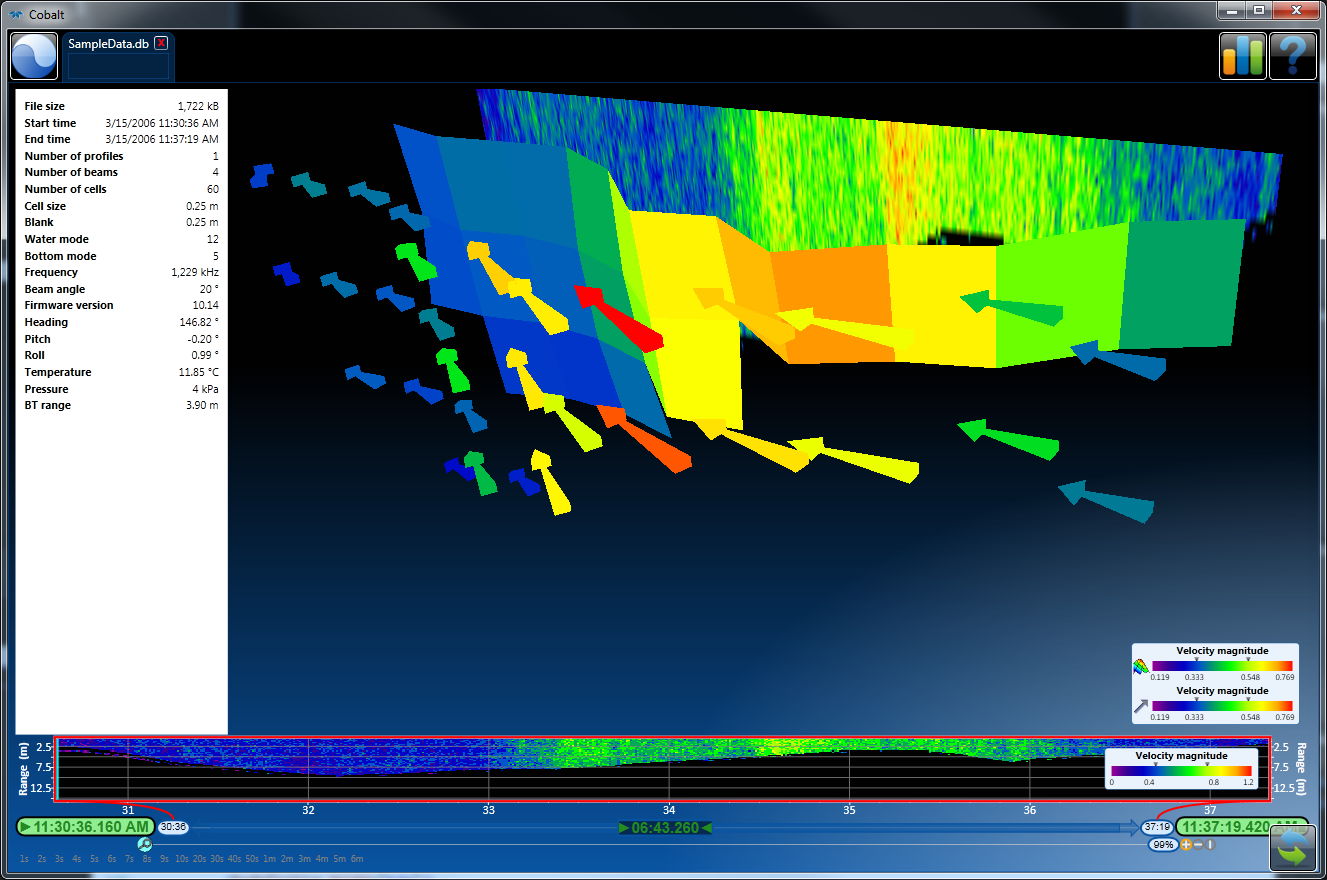

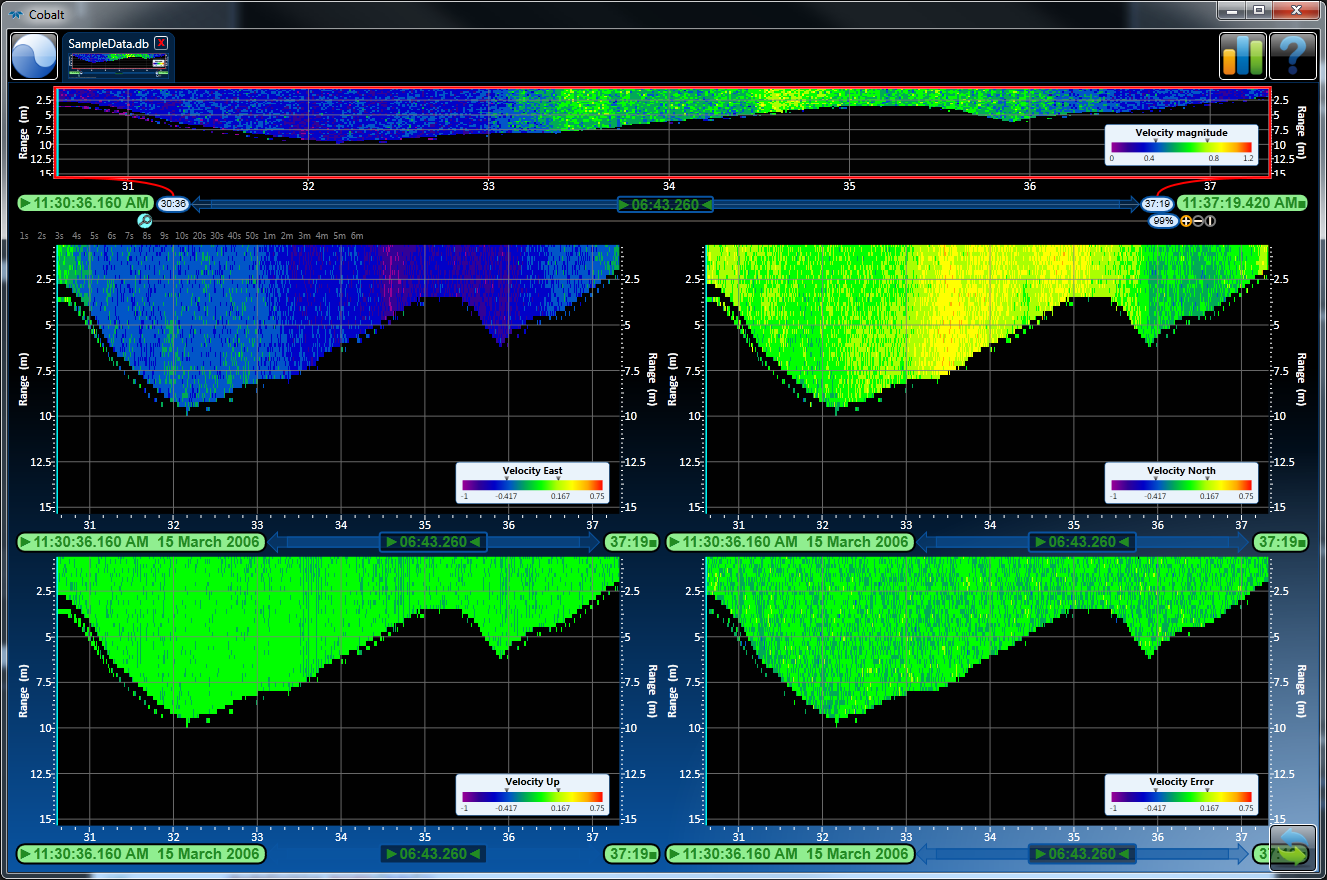

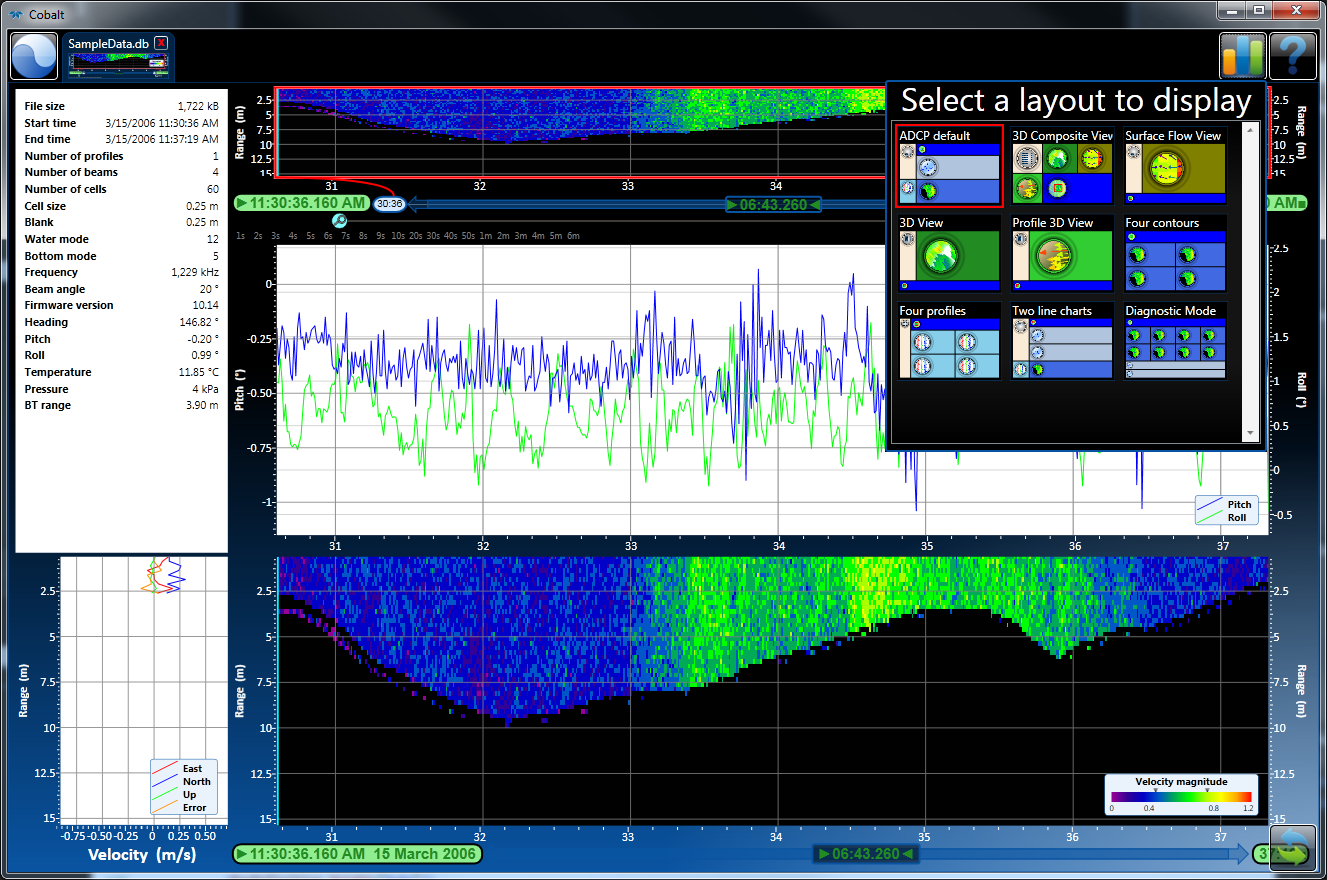

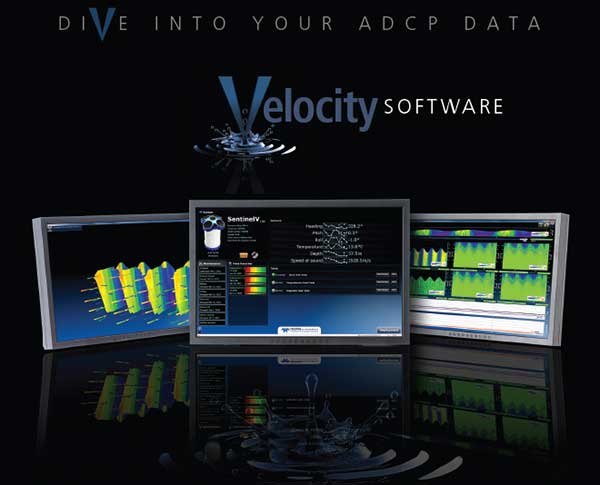

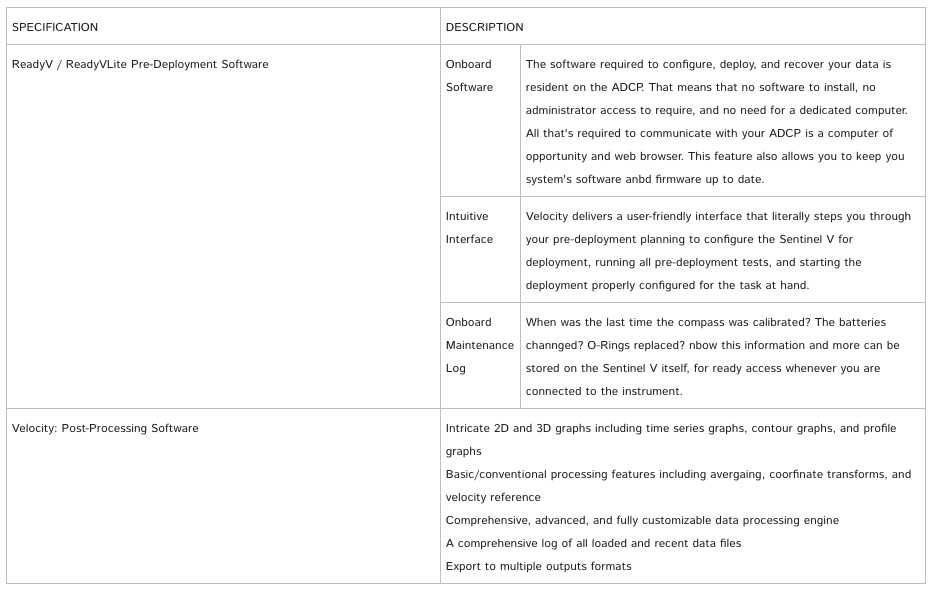

Velocity software
The Sentinel V ADCP is much more than a new product platform - it's a completely new way of interacting with your ADCP and your collected data. The Sentinel V's ReadyV and Velocity software are sure to become the industry benchmark, with its powerful features, multiple views, touch-screen capability and highly intuitive interface. If you can navigate a smart phone - you're ready for Velocity.
- ReadyV: Pre-Deployment Software
- Velocity: Post-Processing Software

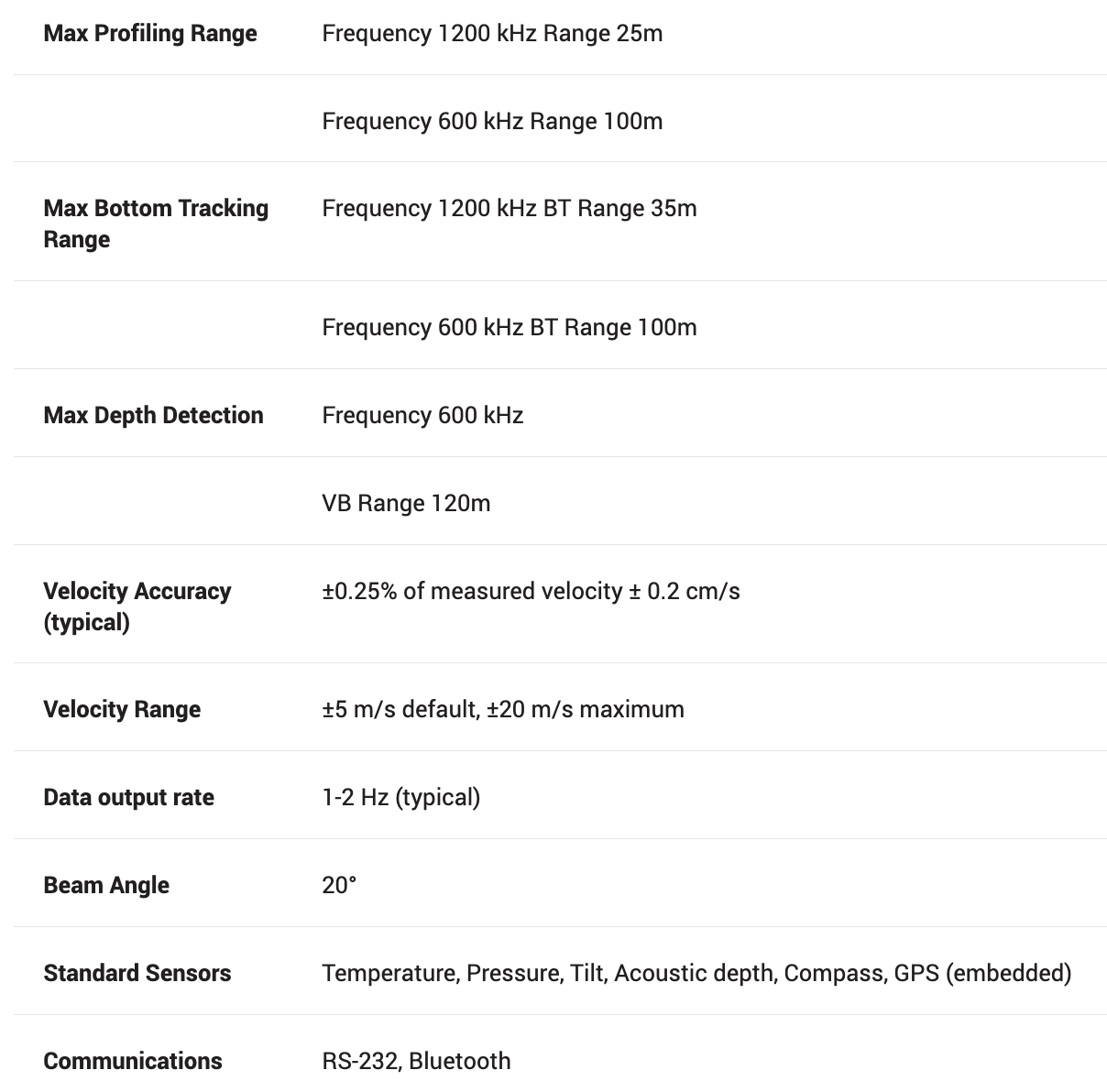

RiverPro ADCP
Unique in its class as a true broadband ADCP, the RiverPro 1200 delivers the very highest accuracy bottom track and water profiling on a second-by-second basis. This is a must for river measurements in which depth and velocity change constantly, often rapidly! RiverPro 1200 users worldwide know that with the right technology, variability between transects can be minimized, saving you time both in the field and back at the office.
The RiverPro 600 handles the most demanding water conditions and specialized applications. 600 kHz remains the industry’s all-purpose acoustic frequency which is fully leveraged in the RiverPro 600 to solidly perform under the widest range of sediment, river depth, and bottom tracking conditions.
Key Features:
- A 20-degree beam, allowing users to collect data closer to the bottom
- A 600 kHz 5th beam collects true vertical velocity with a calibrated RSSI (return signal strength indicator) and range to bottom
-Fully integrated GPS for geo-referencing
- Auto-adaptive sampling (1200 kHz), which allows efficient measurements without the need for user configuration
- Manual mode, which allows advanced users the ability to fully customize their system setting as an alternative to auto-adaptive sampling.
- Ability to integrate user-supplied GPS or echosounder
- Powerful visualization and processing software.

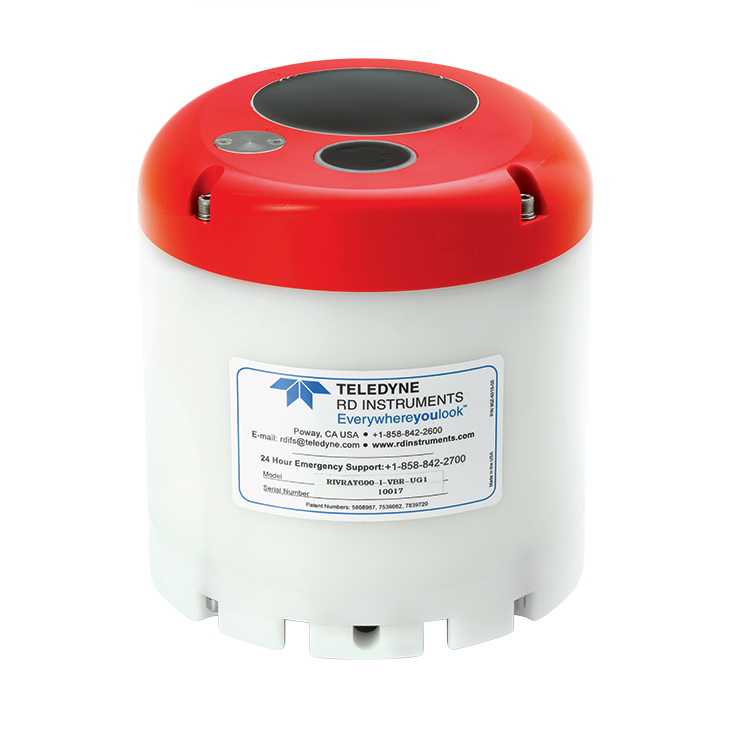

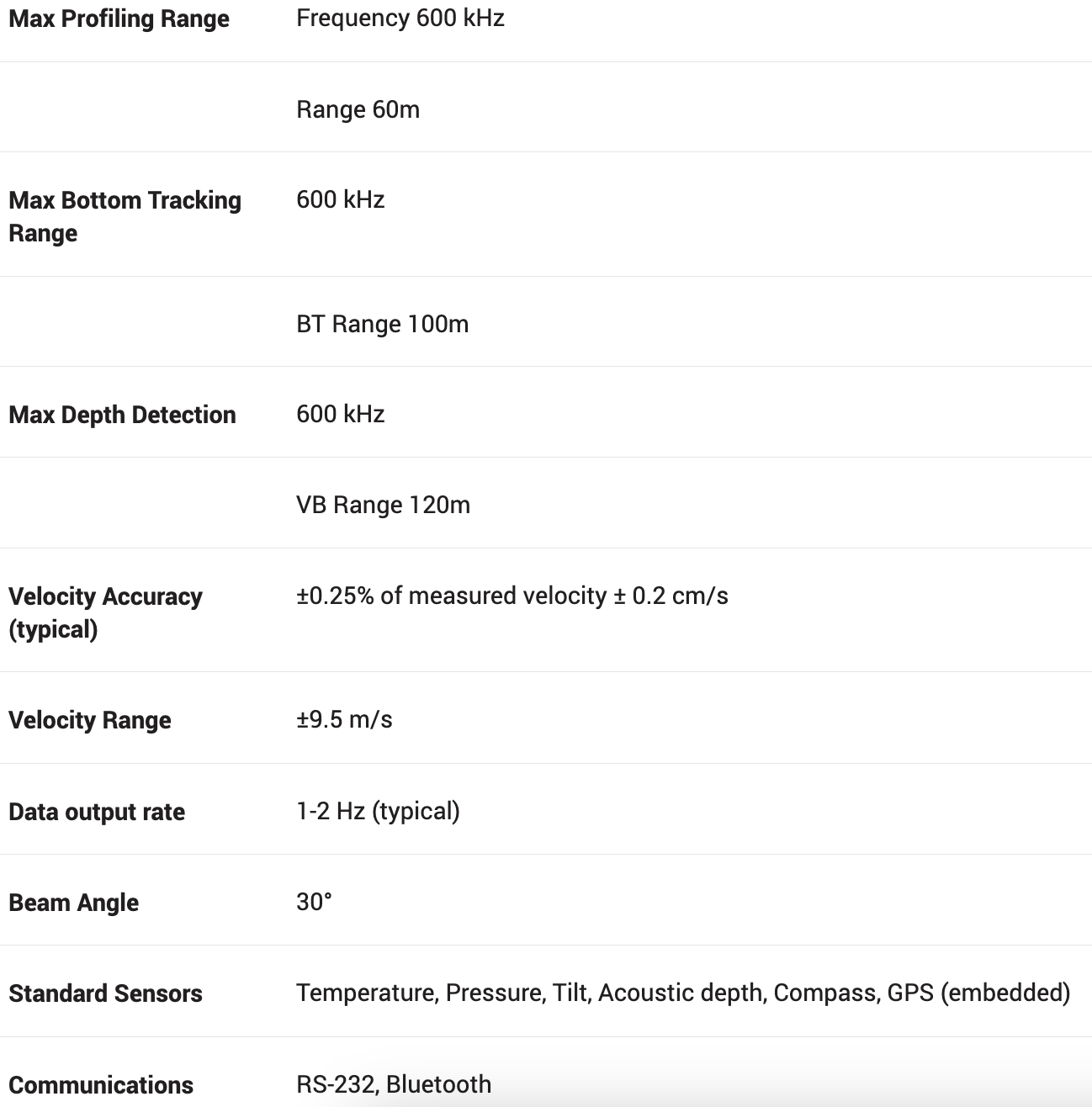

RiverRay ADCP
Go straight to work collecting highly accurate stream and river discharge data with the RIVERRAY ADCP (Acoustic Doppler Current Profiler). This economical turnkey system comes complete with: the RiverRay ADCP, a custom-designed boat, user-friendly software, and convenient wireless communication - everything you need to begin making precision river discharge measurements.
With over forty years experience delivering acoustic Doppler products, Teledyne RDI’s RiverRay is the culmination of years of technology advances and invaluable customer feedback.
From a shallow stream to a raging river, the revolutionary RiverRay delivers the simplicity and reliability your operations require, at a price that won’t break your budget.
Key Features:
- Vertical beam provides more precise bathymetric data and improved characterization of slopes and irregular river beds
- Ease of use—easy to carry, easy to deploy, and easy to operate. Just power and go!
- Qrz-control—automatic adaptive sampling continuously optimizes your discharge measurement from bank to bank, thus ensuring the highest quality data without your intervention
- Versatile—a single instrument can now deliver high quality data in a 0.5 m stream or a 60 m river
- WinRiver II features available

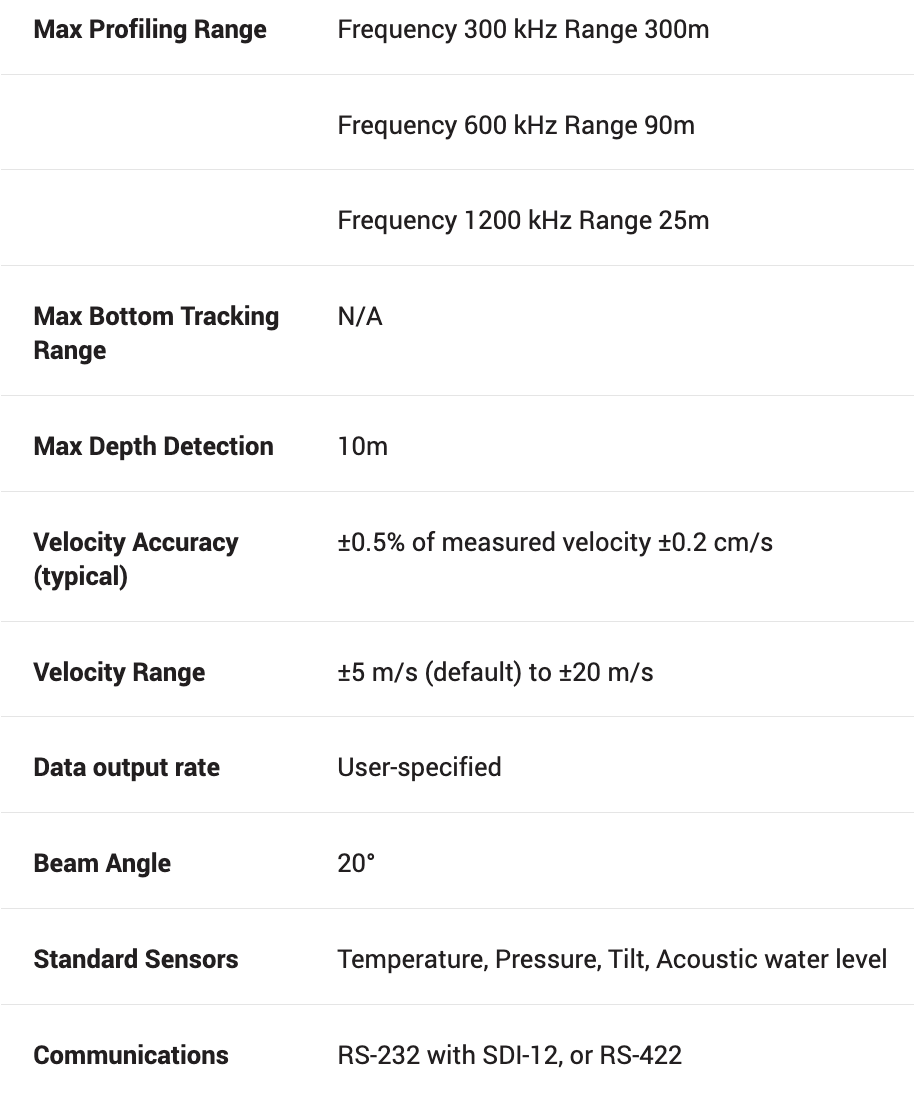

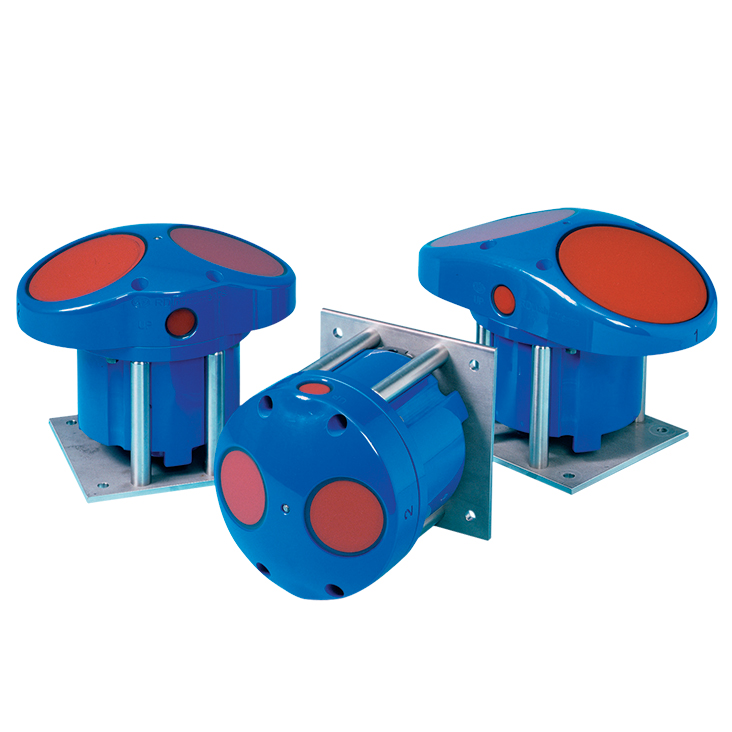

ChannelMaster ADCP
The compact, flexible, and affordable CHANNELMASTER is a horizontally-oriented Acoustic Doppler Current Profiler (H-ADCP) designed to collect high-accuracy water velocity, stage, and discharge data for a wide array of applications.
By leveraging Teledyne RDI’s BroadBand technology, ChannelMaster allows you to obtain unmatched data quality, even in low velocities and complex flows, where a single cell cannot provide enough information.
The ChannelMaster’s innovative design includes everything you need to collect high- quality data. The standard unit comes equipped with temperature, pressure, pitch and roll sensors, and a vertical beam
Key Features:
- Accurate: Teledyne RDI Broadband technology allows for small cells and/or short averaging sampling intervals, thus increasing your data accuracy
- Robust: Collect highly accurate velocities even in difficult environments such as slow flow or rapidly changing flow
- Versatile: ChannelMaster offers a range of 1-128 user selectable cell sizes from 20 cm - 8m and profiling ranges from 1m - 300m (frequency dependent)
- Sturdy: Comes standard with stainless steel mounting fixture.

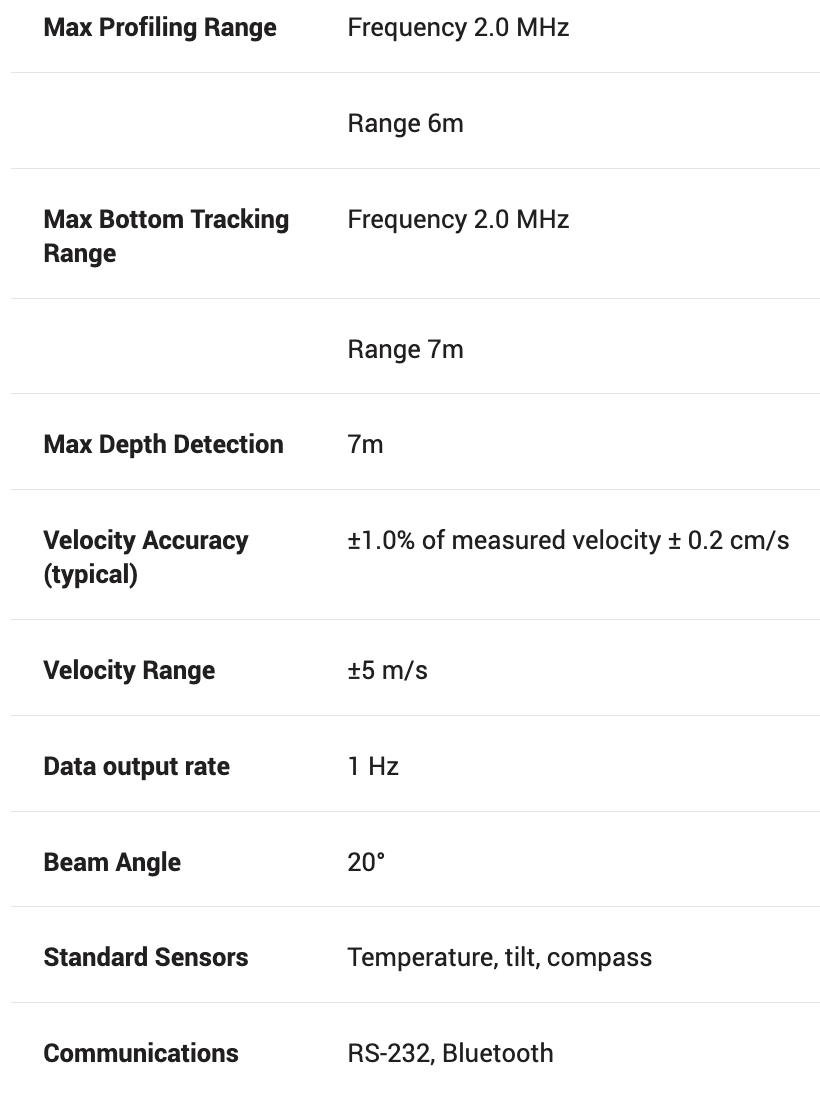

StreamPro ADCP
The StreamPro ADCP revolutionizes discharge and velocity measurement in stream from 15-600 cm in depth. Its bottom tracking capability provides the ability to move continuously across the stream to obtain a discharge measurement in two or three minutes instead of thirty minutes to an hour using the older point-by-point method.
StreamPro's unique design allows you to take measurements without even entering the water. Simply pull the instrument across the stream as you walk across a bridge, or attach the unit to a tagline. Data is collected in real-time and transmitted via a wireless data link to a tablet or PC and displayed with Teledyne RDI's user friendly software.
Key Features:
- Quick: Collect complete streamflow measurements in streams or canals in a matter of minutes.
- Convenient: No need to move from station to station. Simply cross a bridge or use a tagline to collect data.
- Easy to Operate: Data is conveniently acquired using a mobile deivce equipped with a highly intuitive user interface.
- Reduced Disturbance: Small transducer head, 3.8cm in diameter, for minimal flow disturbance.
- Affordable: Value-priced system designed to suit your budget.
- Bottom Tracking: Reliable bottom-tracking in 0.1m–7m depth.
- Wireless: Bluetooth communications utilized between electronics and PocketPC or laptop.
- Low Power Consumption: Full day of operation on 8 AA batteries.
- Versatile: Minimum cell size 2cm with up to 30 cells. Standard profiling range of up to 2m (6m with upgrade).
- WinRiver II features available.

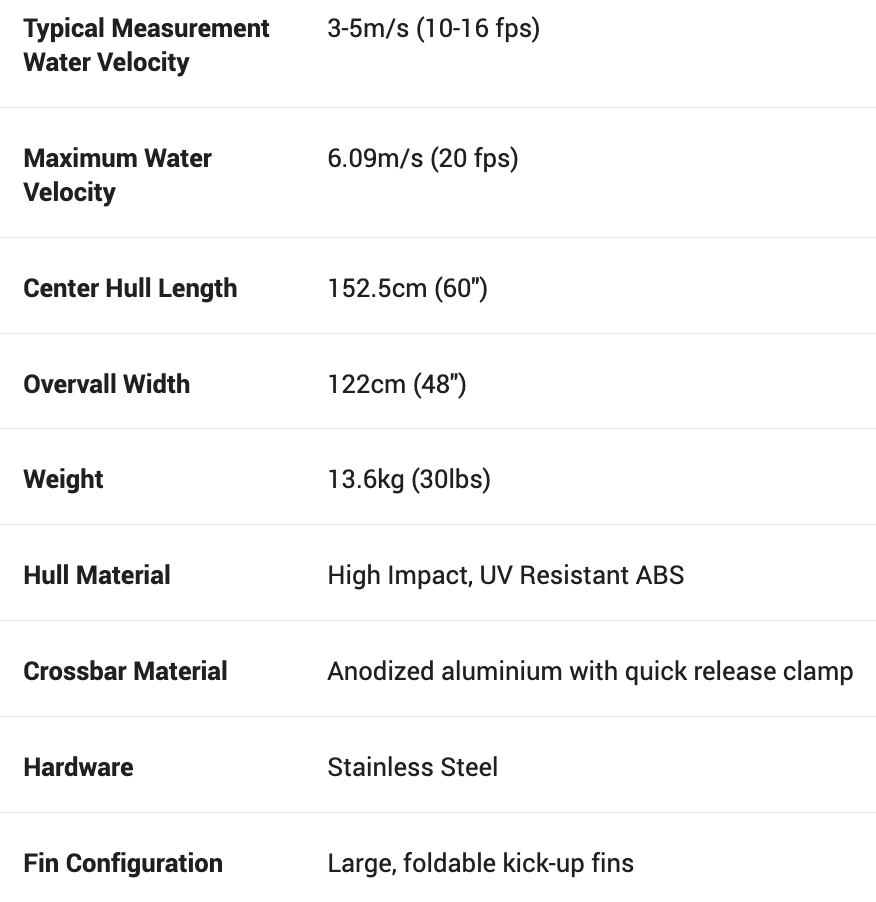

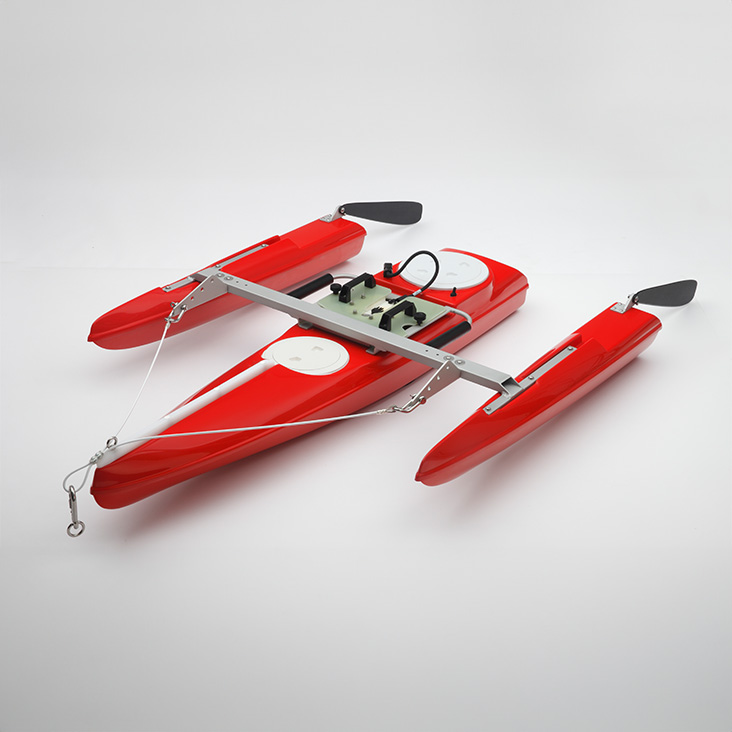

High Speed River Boat
For the best data quality in the most challenging measurement conditions, the High-Speed Riverboat is the new benchmark for acoustic Doppler current profiling for discharge measurements. The advanced hull design allows the boat to slice through standing waves and still maintain instrument position and data collection. Fast flowing water, sometimes problematic with conventional tethered boat designs, can be handled with relative ease with the High-Speed Riverboat. Made of high impact UV resistant ABS, the High-Speed Riverboat is strong and robust to cope with the worst deployment conditions.
Key Features:
- Available for Teledyne RDI and SonTek ADCPs
- Advanced hull design for fast flows and standing waves
- Perfect for problematic sites
- Quick release instrument mount for measurement convenience

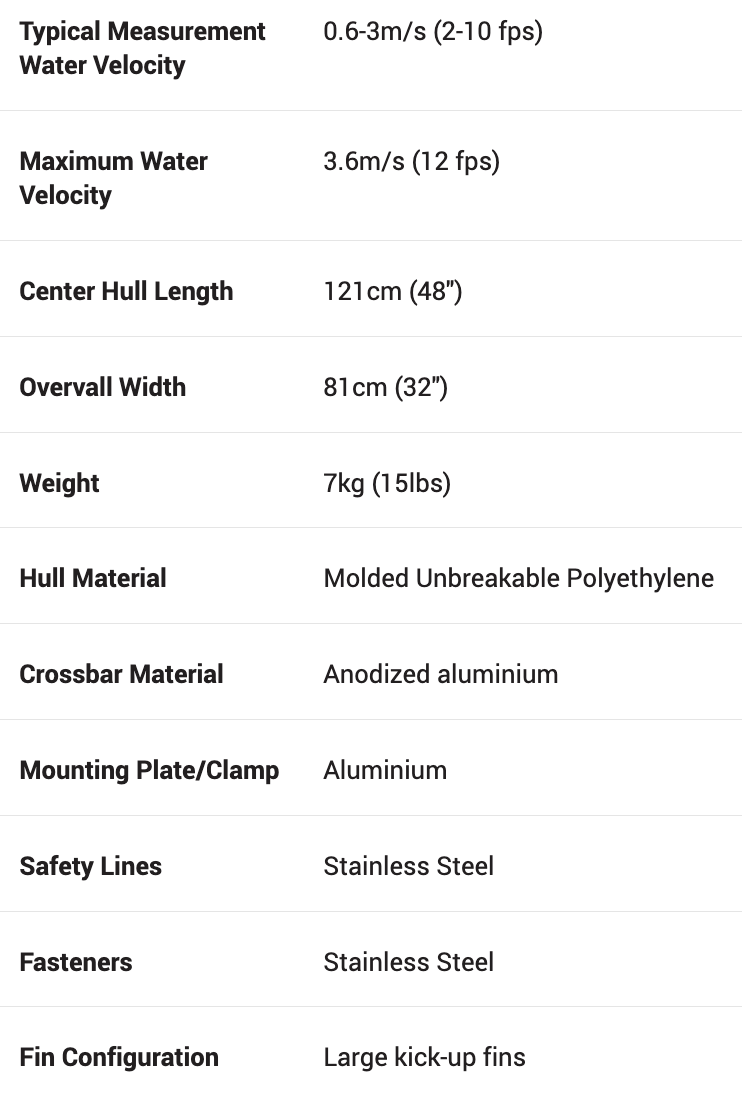

RiverBoat SP
The Riverboat SP is the top choice for deployment of the Teledyne RDI StreamPro acoustic Doppler current profiler. Upgrade from the standard StreamPro float to the more stable, rugged and fully corrosion-resistant tethered boat. The Riverboat SP makes safe, easy measurements of discharge in relatively slow and fast flowing waters. Made of unbreakable polyethylene, the Riverboat SP is strong and can handle tough deployment conditions. The standard boat configuration fits a TRDI StreamPro ADCP, and the latest instrument clamp is suitable for the StreamPro with or without an internal compass upgrade.
Key Features:
- Expand the range of measurements possible with the StreamPro
- High quality, unbreakable hulls and outriggers
- Suitable for StreamPro instruments with a compass upgrade
- Maintains instrument orientation by reducing pitch, roll, yaw
Q-View QA/QC Software
The quality assessment of moving-boat ADCP streamflow measurements is critically important, but it can often be a challenging and highly technical task. Teledyne RDI’s Q-View 2.0 QA/QC Software overcomes these complex issues and provides a unified quality assessment framework that is accessible to all ADCP users independent of their level of expertise. This software includes stateof-the-art methodologies for uncertainty analysis and statistical quality control, which helps gain insights into the quality of your data.
Built-in Quality Grading Systems Q-View has two built-in quality grading systems:
TRDI’s new 100-point grading system and an Australian grading system, to provide a quantitative measure of the overall quality of moving-boat ADCP streamflow measurements. The 100-point rating scale is analogous to the well-known 100-point wine rating scale, and the American high school grading system. Based on the scoring for five important quality indicators, Q-View generates a final score that can then be graded accordingly to a standardized and universally familiar system based on: A+ (excellent), A (very good), B (good), C (fair), D (meet minimum criterion), or F (fail to meet minimum criterion, unacceptable).
These two grading systems help emphasize a due diligence by he ADCP user for following standard quality assurancep rocedures, while quickly identifying any non-compliance.
Uncertainty Analysis and Uncertainty-based Statistical Quality Control
Quantifying the measurement uncertainty is rapidly being adopted as one of the best methods of providing a direct metric for measurement quality. Q-View estimates the so-called Type A uncertainty by analyzing discharge data collected from multiple transects made under steady flow conditions. Q-View displays the uncertainty control chart based on a recently developed theory for statistical quality control of moving-boat ADCP streamflow measurements.
The uncertainty control chart provides a visual qualification against acceptance criteria. This allows users to observe changes in the overall measurement and data quality from one transect to another, with a clear qualification threshold.
Built-in Uncertainty Model for Single Transect Discharge
Q-View has a built-in sophisticated model for estimating the uncertainty of a single transect discharge measurement. An important benefit of this uncertainty model is that it can be used for all conditions, not only for steady flow, but also for unsteady flow conditions such as tidal or flood flows. In unsteady flow conditions, the usual uncertainty analysis is impracticable. This uncertainty model was calibrated using 205 transect datasets and verified with an additional 382 transect datasets. It provides a useful tool for uncertainty analysis and uncertainty-based measurement quality control of moving-boat ADCP streamflow measurements.
Discharge Sensitivity Analysis
Q-View provides discharge sensitivity analysis that automatically determines the best extrapolation method for the unmeasured top and bottom layers.
Key Features:
- All-in-One professional report that combines a summary of discharge results with a comprehensive quality assessment.
- Seamless, user-friendly integration with WinRiver II, eliminating the need to learn a new software platform.
- In-depth qualification of discharge measurements including a single universally-accepted measurement quality score and 100 point grading system, uncertainty-based quality control, sischarge measurement sensitivity analysis, detailed discharge statistics, uncertainty analysis for both individual transects and the entire measurement, instant data qualification for the field user, saving you valuable time, while ensuring that you've collected the data set you need.
