Positioning OEM boards

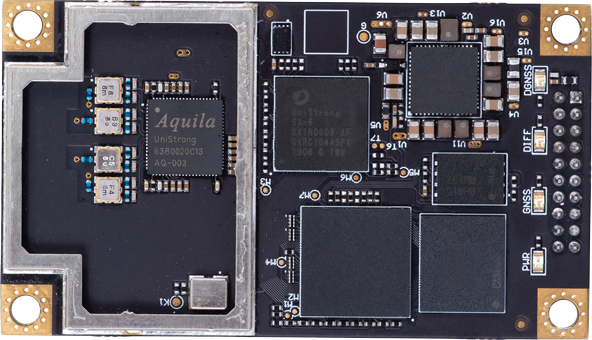

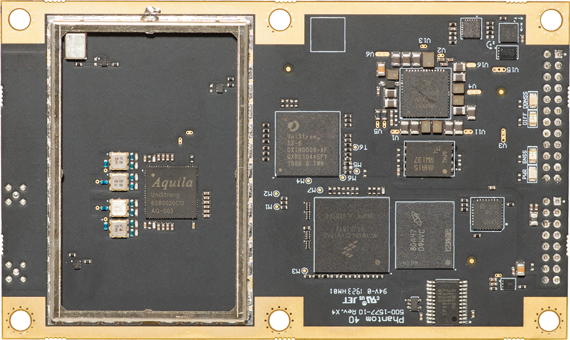

Track more signals for unparalleled positioning performance with Hemisphere GNSS’ new Phantom 20, 34 and 40 OEM boards. The latest technology platform enables simultaneous tracking of all satellite signals including GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS and L-band making it the most robust and reliable solution for GIS, agriculture, and machine control. The power management system efficiently governs the processor, memory, and ASIC making it ideal for multiple integration applications.
The Phantom series boards are the most accurate and reliable OEM modules with two advanced technology features; aRTK™ and Tracer™. Hemisphere’s aRTK technology, powered by Atlas, allows the Phantom 20 and 34 to operate with RTK accuracies when RTK corrections fail. Tracer uses specialized algorithms to sustain positioning in the absence of correction data.
With the Phantom boards, positioning is scalable and field upgradeable with all Hemisphere software and service options. Use the same centimeter-level accuracy in either single frequency mode, or employ the full performance and fast RTK initialization times over long distances with multi-frequency, multi- constellation GNSS signals. High- accuracy L-band positioning from meter to sub-decimeter levels available via Atlas GNSS correction service.
Leverage the industry standard form factor for easy upgradeability from other manufacturers’ modules.
Positioning and heading OEM boards

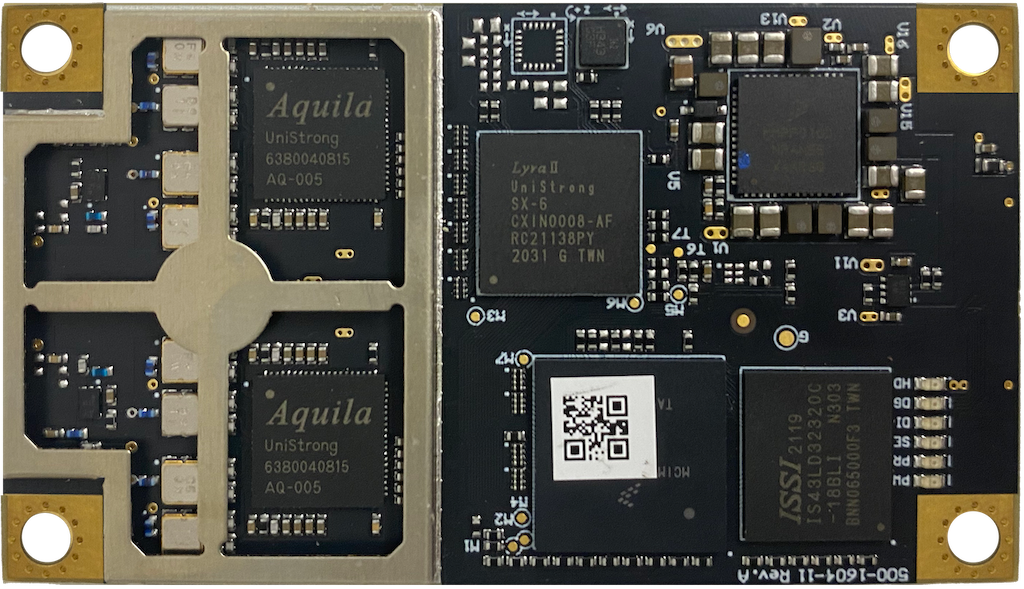

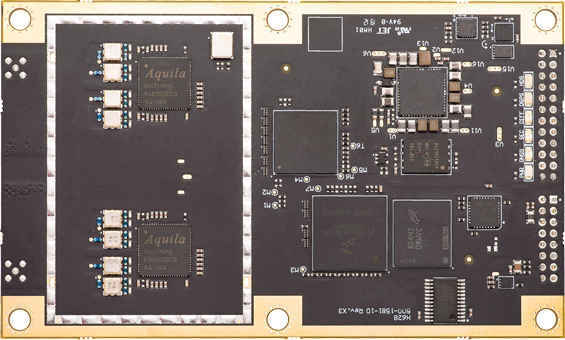

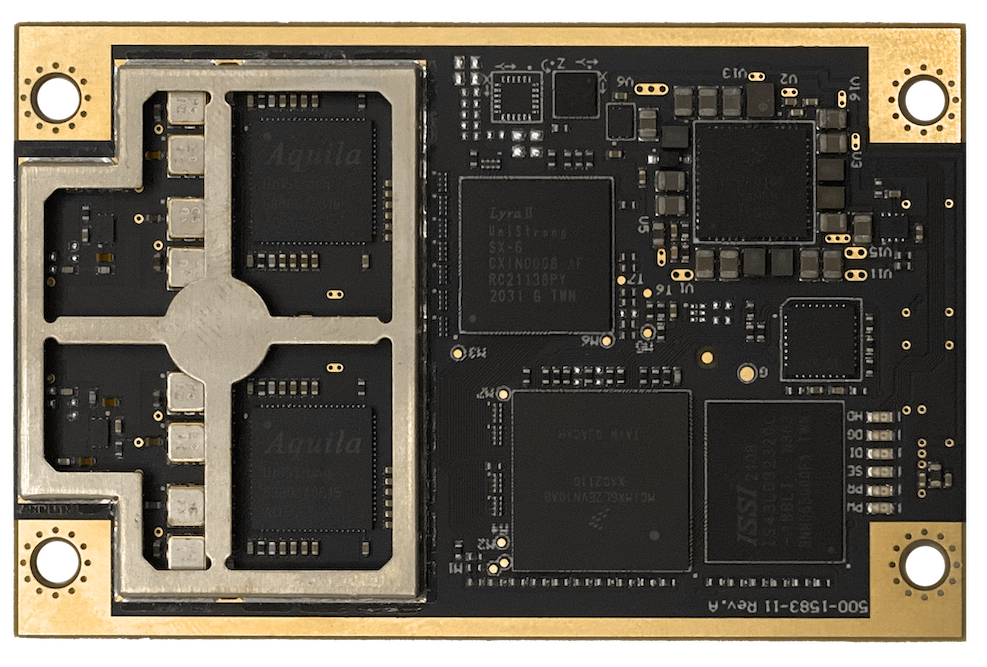

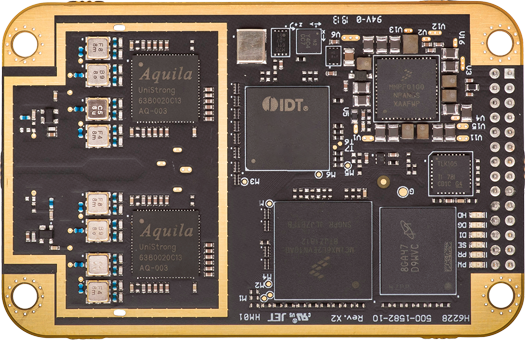

Develop sophisticated machine control and navigation solutions in a complex world full of dynamic environments. The Vega 28, 40, 34 and 60 are our most advanced GNSS heading and positioning boards.
They all use dual antenna ports to create a series of additional capabilities including fast, high-accuracy heading over short baselines, RTK positioning, onboard Atlas L-band, RTK-enabled heave, low-power consumption, and precise timing.
With the Vega boards, positioning is scalable and field upgradeable with all Hemisphere software and service options. Utilize the same centimeter-level accuracy in either single frequency mode, or employ the full performance and fast RTK initialization times over long distances with multi-frequency multi-constellation GNSS signals. High-accuracy L-band positioning from meter to sub-decimeter levels available via Atlas correction service.
Leverage the industry standard form factor for easy upgradeability from other manufacturers’ modules.

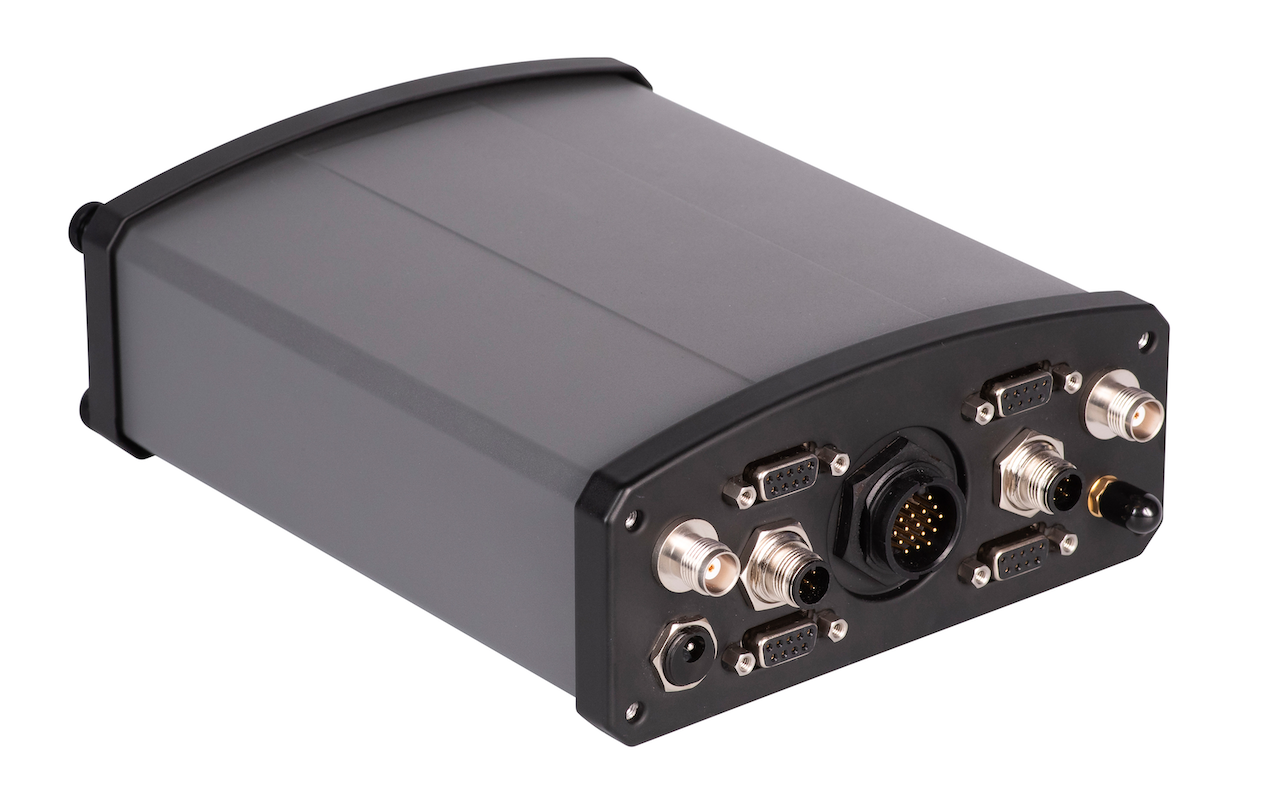

Universal Development Kit (UDK) v2
The Universal Development Kit ST allows you to integrate a Hemisphere GNSS OEM board into your design. The Universal Development Kit ST supports the following Hemisphere GNSS OEM boards:
- Phantom™ 20
- Phantom™ 34
- Phantom™ 40
- Vega™ 28
- Vega™ 34
- Vega™ 40
- Vega™ 60
Differential OEM boards

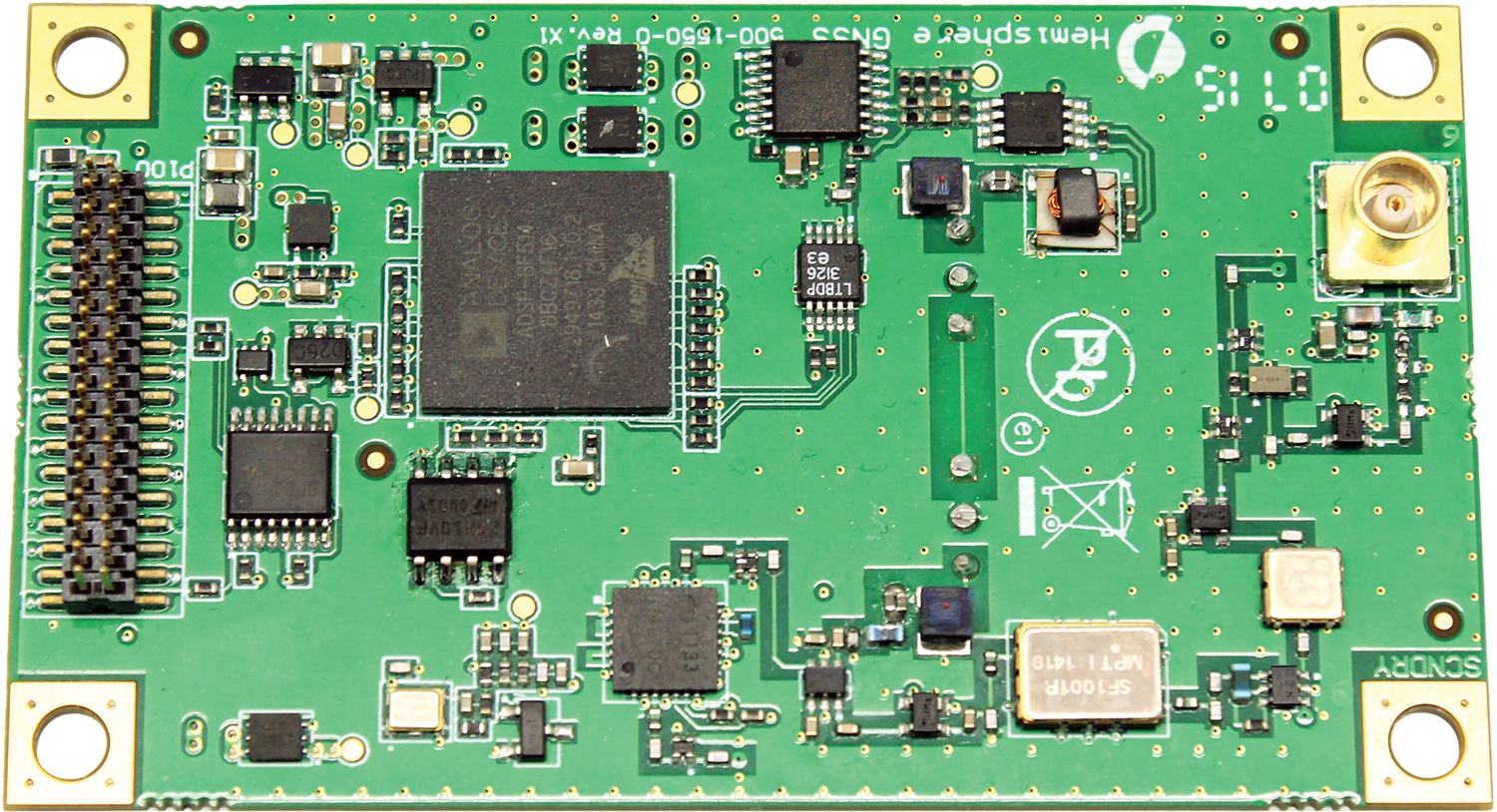

LX-3
Improve GNSS positioning accuracy by adding L-Band differential capability with Hemisphere GNSS’ LX-3™ OEM board. L-Band differential signal corrections are broadcast via satellites to cover most land areas worldwide. The LX-3, coupled with Hemisphere GNSS’ exclusive P206, P306, and H200 boards, can track L-Band high precision signals that improve position accuracy to better than 10 cm. It is an ideal alternative or backup to other differential sources such as RTK, SBAS (WAAS, EGNOS, MSAS, etc.) and radiobeacon, especially in regions where those signals are difficult or impossible to track.
The LX-3 automatically tracks the best differential satellite broadcast if more than one is available in a particular region or tracks a specific satellite manually set by the user.
The LX-3 comes as an OEM board that can easily be mounted with a P206, P306, or H200 board for optimal performance.

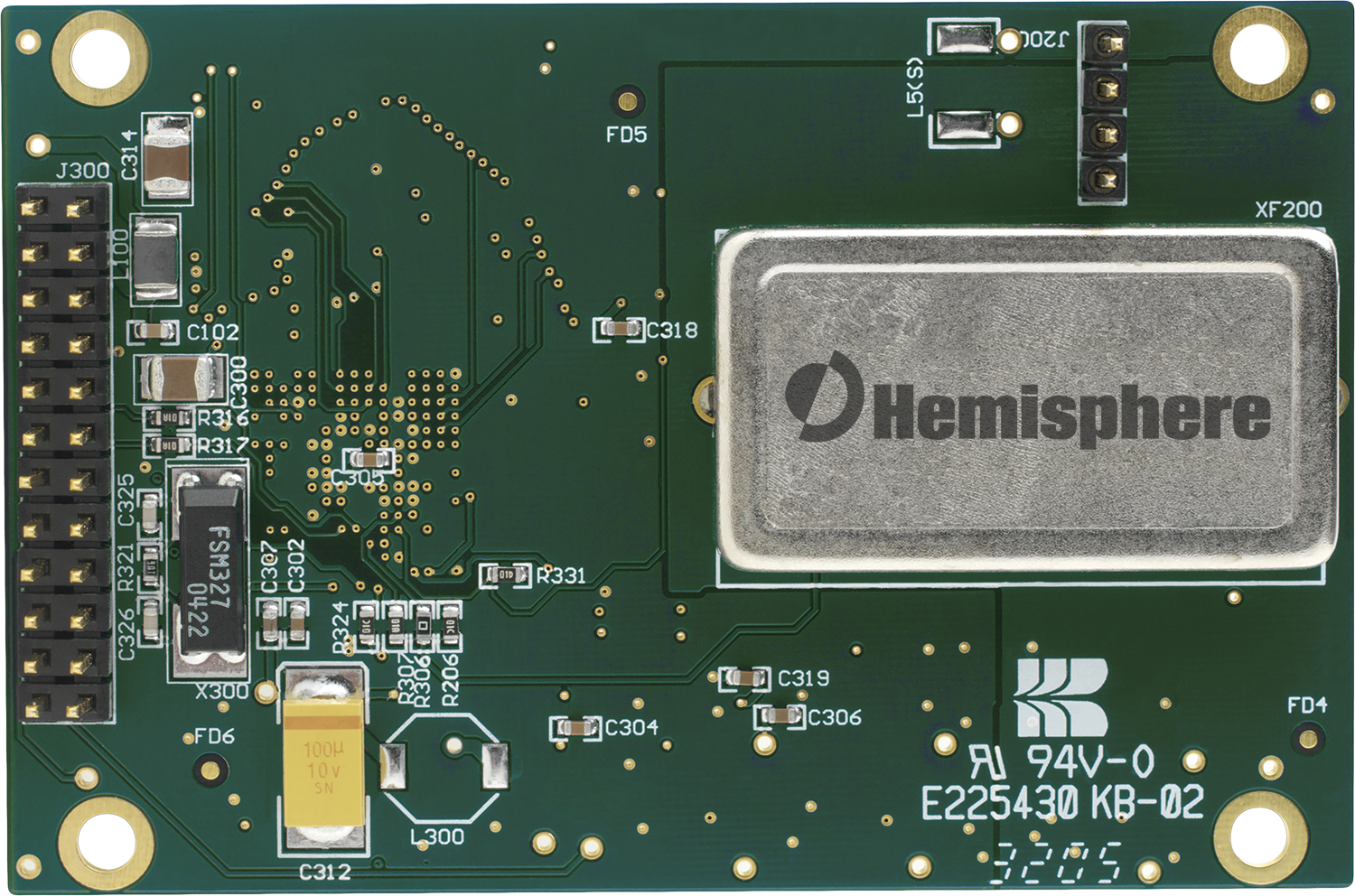

SBX-4
Provide a reliable source of differential corrections with the SBX- 4™ radiobeacon board that augments a separate GPS receiver with free accuracy-improving correction data from networks of beacon stations located throughout the world.
With dual-channel architecture to ensure the best station is always being decoded, the SBX-4 delivers high performance reception and a wide range of functionality including the capability to be tuned to signal strength or station distance.
The SBX-4 outputs the industry standard RTCM SC-104 format accepted by differential-ready GPS receivers and can also be configured and monitored with NMEA 0183 protocol.
